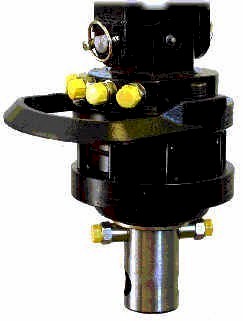

Valby R45 Hydraulic Rotator $Call For Our "Below List Prices!" |
| SPECIFICATIONS | ||
| Rotation | Unlimited in either direction |
|
| Max. Load | 9,900 lbs. | |
| Max. Working Pressure | 3,000 PSI | |
| Torque | 737 ft. lb. / 2,320 PSI | |
| Weight | 61 lbs. | |
| Has pin to fit grapple hanger with hole of: | 1" | |
| -The hook up dimensions of the R45 allow it to replace GV4 and the FR10 rotators. | ||
|
ROTATORS WITH AXLES
Hook up Dimensions in inches. Measurements in parentheses are in millimeters. |
| SPECIFICATIONS | |
| A) Width of block on top of rotator | 2.874" (73 mm) |
| B) Pinhole diameter through rotator | 0.984" (25 mm) |
| C) Axle Diameter | 2.322" (59 mm) |
| D) Pinhole diameter to fasten grapple to rotator | 1.181" (30 mm) |
| E) | 9.99" (254 mm) |
| Thread | JIC 3/4" 16 |
|
