Easy, Efficient & Profitable To Own, Maintain & Service!
STANDARD FEATURES:
The MOST Serviceable Tractor In Its Class!
Bi-Directional Functionality:
The ‘Bi-Directional’ Feature Is Accomplished With The ‘Reversible Operators Station’:
Reversible Operator Station Rotates 180° For Front or Rear Operation:
A Single Lever & Your Body Weight Momentum Makes 180° Rotation A 'Piece-Of-Cake'!
Joystick & Arm Rest Controls Rotate With The Operator Station – It’s Simple, Quick, Complete & Easy!
Top Speed OF 25MPH Is Stable & Available In Forward Or Reverse!
OPTIONAL (1 of 8): Highway Lighting Package Available For Rear Directed Road Travel.
Spicer Axle Quad ‘4 Wheel’ Steering:
Independent Spicer Axles Provide:
Four Wheel Quad Steering.
Front Wheel (only) Steering.
Rear Wheel (only) Steering.
Four Wheel Crab Type Steering.
4 Wheel Steering Provides:
Unique Maneuverability.
Slope & Hillside Stability.
10’-6” Outside Radius!
Eliminates Axle Bind Even On Tightest Radius.
Reduces Turf Damage In Tight Turns.
Front & Rear Differential Lock.
Moveable Front Fenders Included - Not Shown In Some Photos.
NOTE: For you ‘Front Hitch Enthusiasts’; When using weighty, ‘Ground Contacting Attachments’ on Front Hitches, Quad Steering will prevent the common & undesirable ‘Pushing & Sliding’ turning interference (from the Attachment) during left or right turns!
Quad Steering introduces the same advantage on the Rear 3-Point, when using ‘Ground Contacting Attachments’ in Reverse Travel, and since the Rear 3-Point has a greater lift capacity, this Quad Steer advantage is supplemented with the Nitrogen Accumulators’ weight balancing system – noted separately.
Iveco Tier 5 Diesel Engine:
170HP (@2200RPM), 4Cyl, 275ci/4.5L:
155HP, PTO.
High Pressure, Mechanical Fuel Injection:
23,206PSI Injection For Superior Efficiency!
Maximum 2375 RPM’s.
Reversing Fan:
For Efficient, ‘On-The-Fly’ Dust & Debris Clearing!
Intake Air Heater.
120v Engine Block Heater.
Linde 3-Range HST Transmission:
Lever Selection for 3 Ranges:
LH Reverser Shuttle Selects 4 Speeds in Each Range ‘On-The-Fly’!
0.01MPH Low Speed.
25MPH Top Speed:
Infinite 0-25mph Speed Control Via Joystick:
Foot Pedal Speed Control Also Included.
Automatic Downshifting.
Deluxe Spacious & Quiet Cab With:
Generously Sized Cab & Large Glass Door Comfortably Fits The Biggest of Us!
59” From Floor to Ceiling!
Heated Grammer Air Ride Seat.
Tilt & Telescopic Steering Wheel.
ADROIT Models Have Deluxe Grammer Air Ride Seat.
OPTIONAL (2 OF 8): AGILE Models: 'Deluxe' Grammer Air Ride Seat.
360° Visibility.
Pneumatic Cab Suspension.
Armrest Control Console:
Integrated Joystick & Foot Pedal Speed Control.
4 Rear & 4 Front LED Lights:
Front Lighting Supplemented with 2 Halogen Lights which Include LED Side Marker Indicators!
Heat & A/C.
Front & Rear 'Vented' Window Defrost:
OPTIONAL (3 of 8): Rear Window 'Electric' Defrost.
Stereo Radio System With USB Port, Blue Tooth & Spotify Capable.
Front & Rear Wipers.
Real Time Fuel Monitor Displays The Dramatic Fuel Efficiency Of The Tractor, and Assists The Operator In Efficient Operation!
Better Tractors
Tractors That Make Work Efficient Again!
Cat 2, 3-Point Hitch (Rear):
3PT Down Pressure:
3Pt Speed (Up & Down) is Adjustable w/Armrest Controls!
9900lb Lift Capacity.
Electronic Operation:
Patented Traxx-Glide Dual Axis Load Share System (Automatic ‘Load Transfer System’):
Relocates Up To 80% Of Attachment Weight To The Rear Wheels For Traction.
Enhances Stability On Slopes & Hillsides.
Reduces Turning Radius.
Reduces Excessive Gravity Down Force On Work Area.
Ensures The Tractor Dominates The Attachment & NOT Vice Versa!
Nitrogen Accumulator For Shock Absorption:
When using weighty, ‘Ground Contacting Attachments’ in Reverse Travel, the Nitrogen Accumulators’ ‘Weight Balancing System’ prevents the common & undesirable ‘Pushing & Sliding’ turning interference (from the Attachment) during left or right turns! The advantage introduced from the Nitrogen Accumulator works together with the similar advantage provided by Quad Steering!
Push Button 3PT Controls On Each Fender.
Push Button Fender Control For One Set Hyd Outlets, Pre-plumbed to Hyd Top Link!
Hydraulic Toplink!
Pull Arms Have ‘Hook Ends’ for Quick Hitch Type of Connection!
OPTIONAL (4 of 8);Front 3-Point For AGILE Models:
3PT Down Pressure:
3Pt Speed (Up & Down) is Adjustable w/Armrest Controls!
6600lb Lift Capacity.
ADROIT Models Include Front 3-Point (& PTO) As A Standard Feature!
Accommodates The Obvious, But Can Also Be Used For A Ballast Box - Useful When Maxing Out The 10,000lb Lifting Capacity Of The Rear 3Pt – Particularly Beneficial On Steep Slopes & Hillsides.
Soft Starting 540/1000RPM PTO (Rear):
Dual PTO Output Shafts:
One PTO Shaft Rotates CW.
One PTO Shaft Rotates CCW:
1000RPM Option is CCW Only.
Oversized PTO Clutch & Severe Duty Capacity Driveline.
OPTIONAL (5 of 8): Soft Starting Front 1000RPM PTO, CCW Only.
Load Sensing Hydraulic System With Quad Rear Hydraulic Outlets (at 13gpm).
2 Sets with Float Capability.
1 Set with Continuous Flow Capability.
Sight Glass For Hydraulic Fluid Level Observation!
Sight Glass For Transmission Fluid Level Observation!
OPTIONAL (6 of 8): Bolt-On Chassis Bottom Protective Cover.
OPTIONAL (7 of 8): Self-Leveling Front End Loader with Global Q/A 84” Bucket.
OPTIONAL (8 of 8): Bolt-On Protective Cage For Forestry Work.

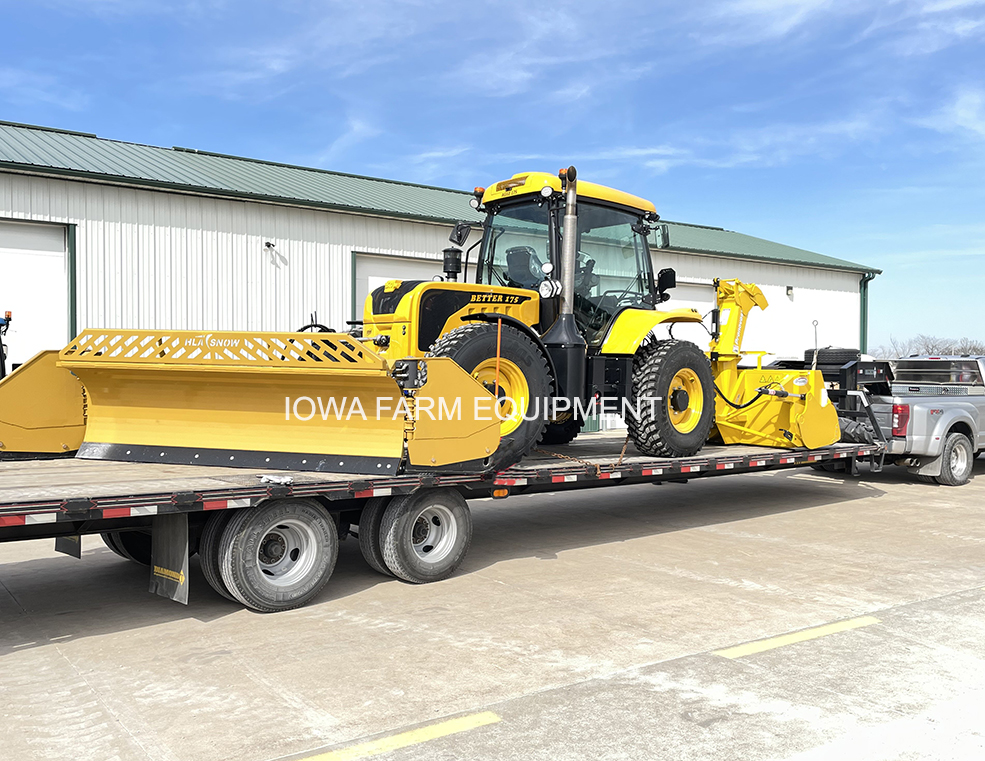

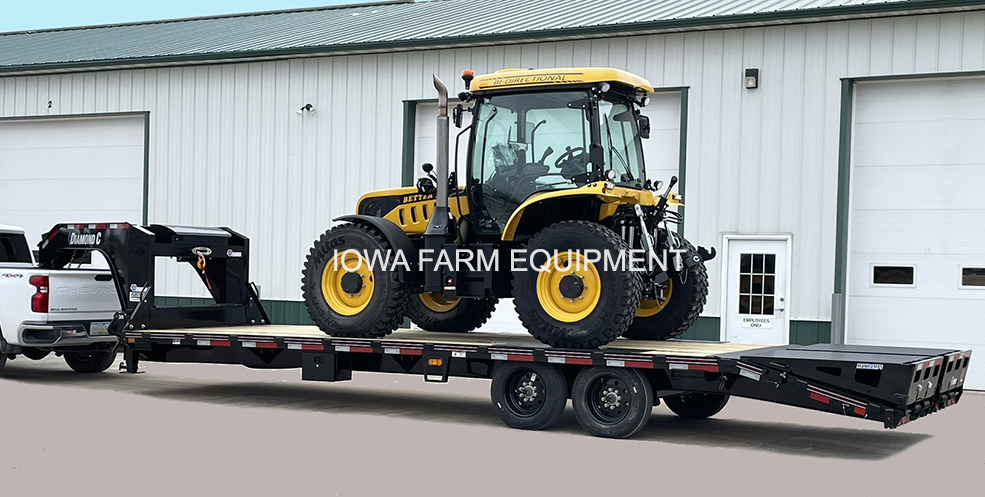

170HP Utility Tractor That Can Be Trailered Like This, And Yes, Reversing The Operator Station To Drive Off Is Another Advantage!

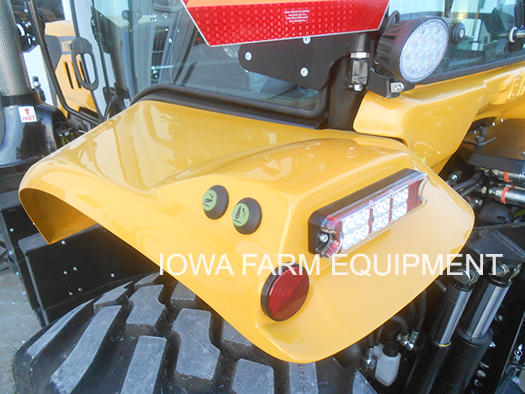

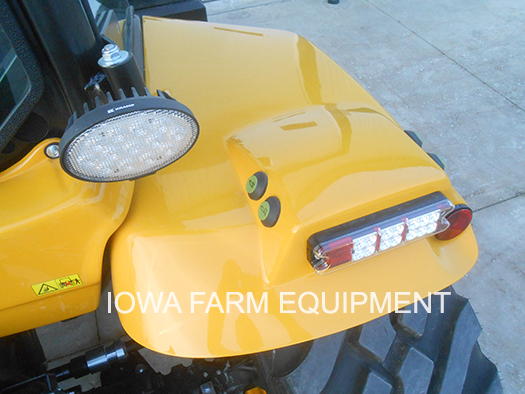

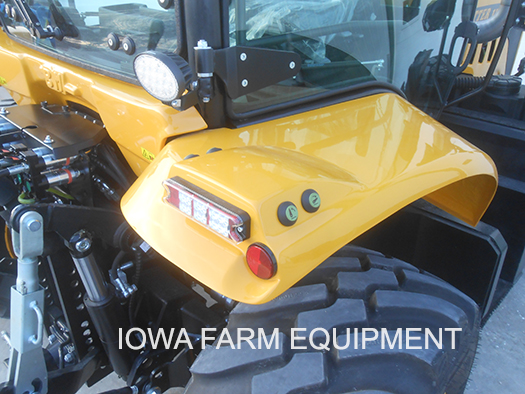

Left & Right Fender Rear 3-Point Controls!
Rear Control For Hydraulic Top Link!

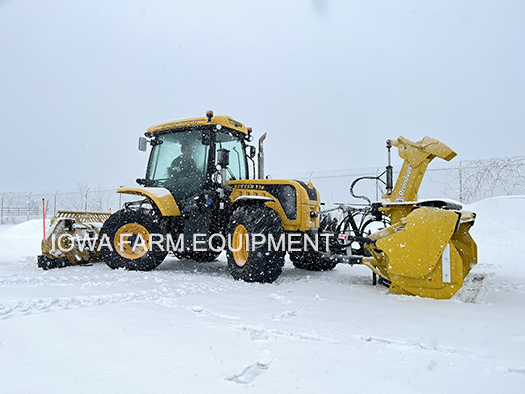

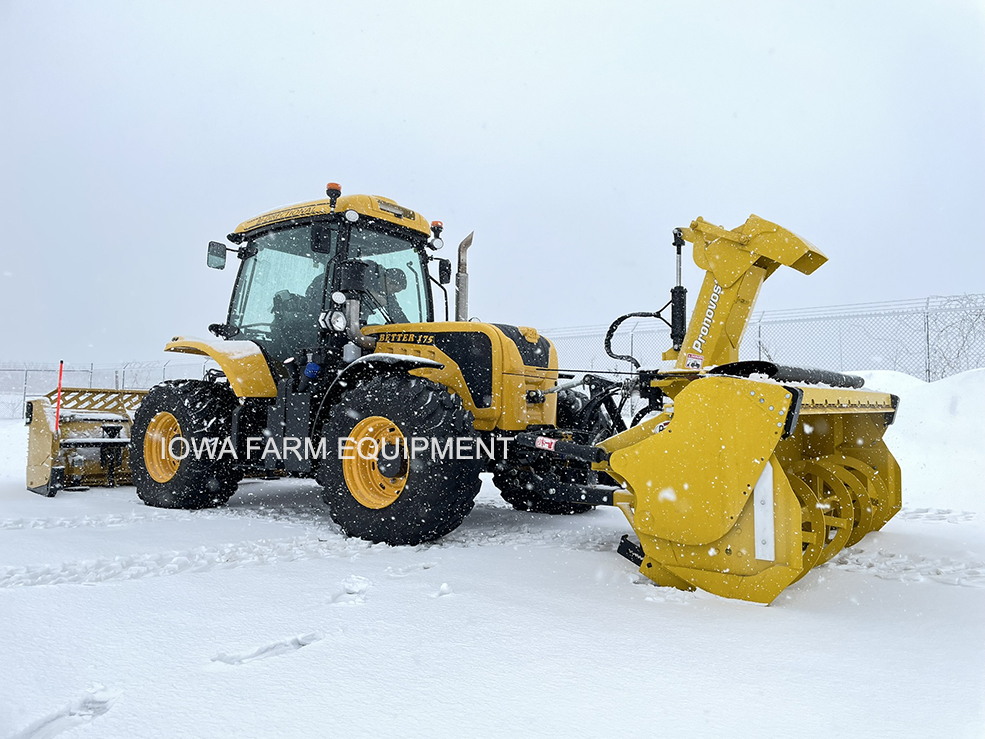

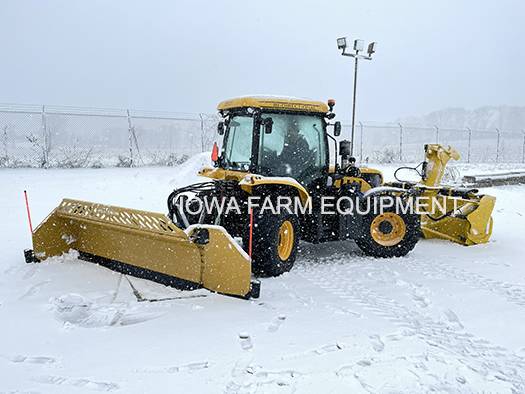

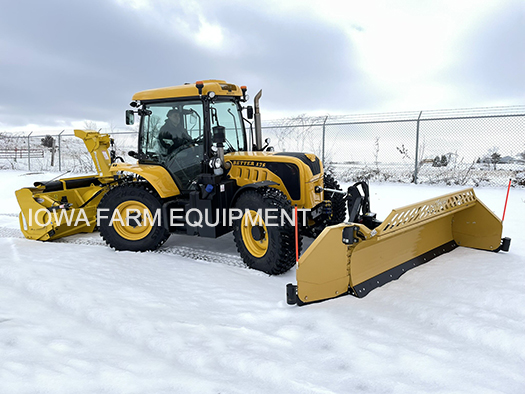

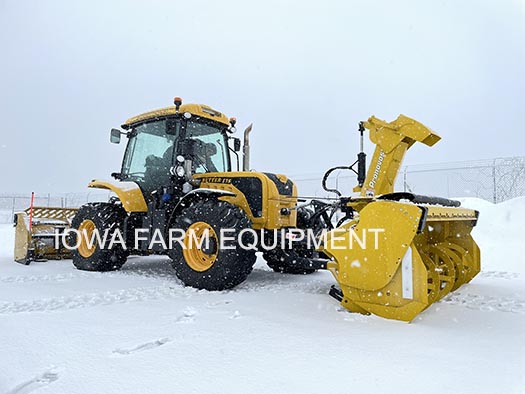

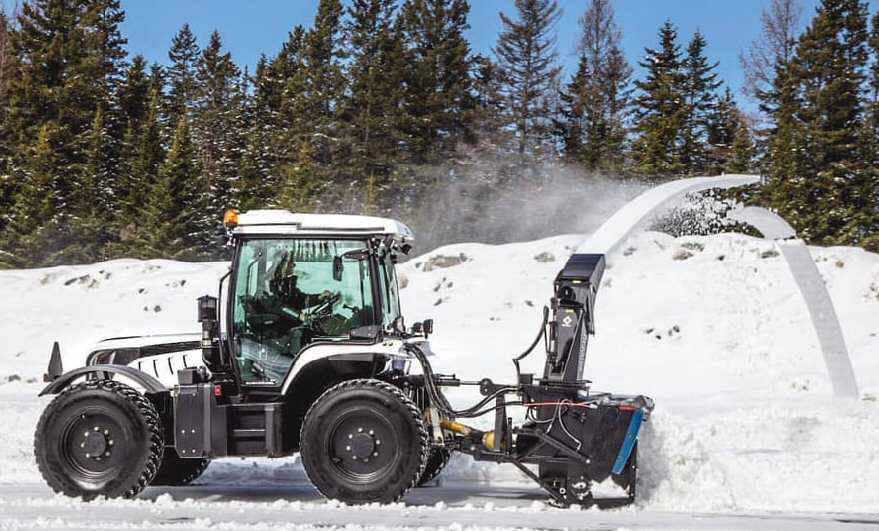

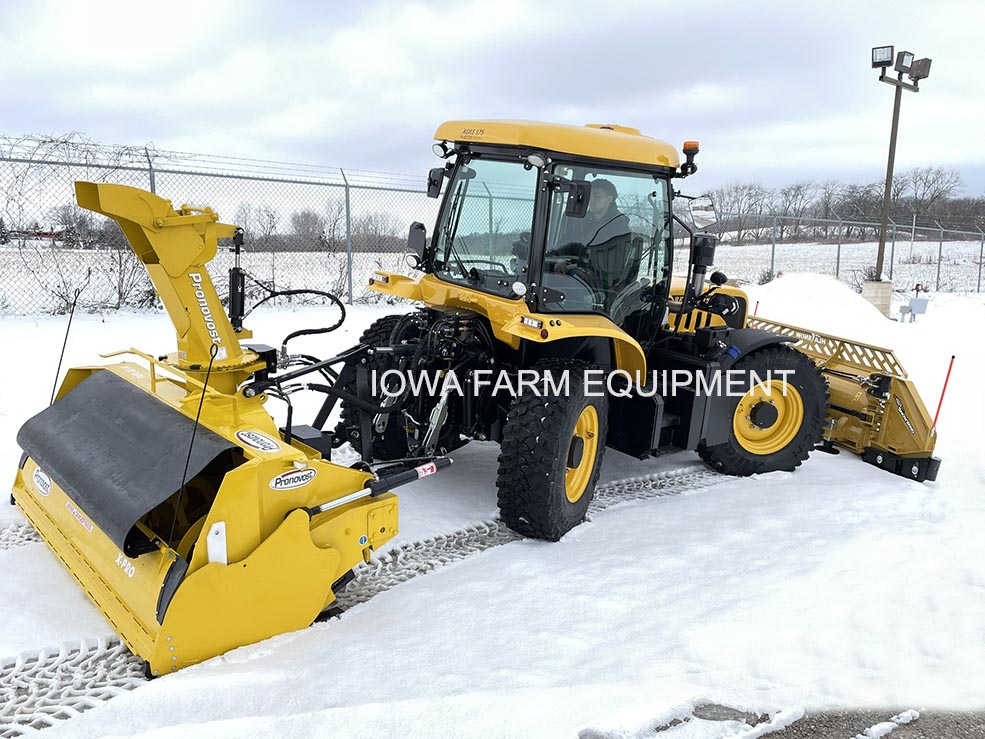

Another ‘Fantastic’ New & Efficient Use: Use The Standard 3-Point Snow Blower With Operators Station Reversed!
Now You Can Have The Visibility & Ergonomic Convenience You’ve Always Wanted, Without Buying The More Costly Front Mounted Blower Package.
Our Tractors Make Snow Blowing...Fun Again!

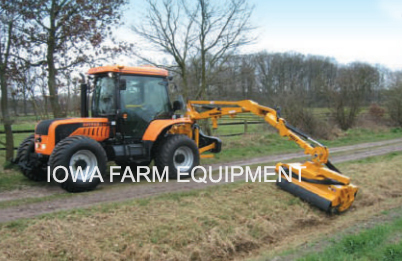

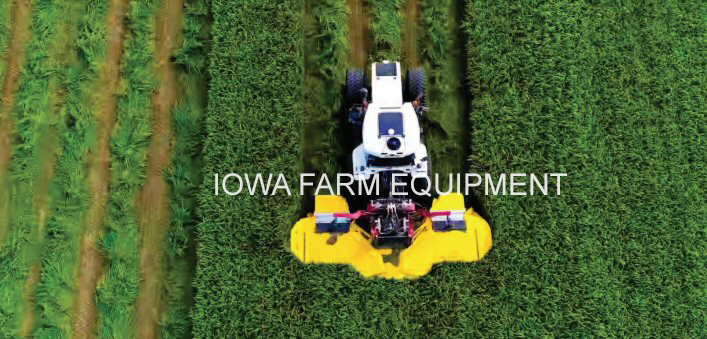

Attach Our 3-Point ‘Flail Type’ Boom Mowers To The Front, Or Use The Reversible Operators Station And Attach To The Rear 3-Point – Either Way, Visibility, Ergonomic Convenience, Reduced Structural Suspension & Beautiful Results Are Yours! Our Tractors & Equipment Work For You!

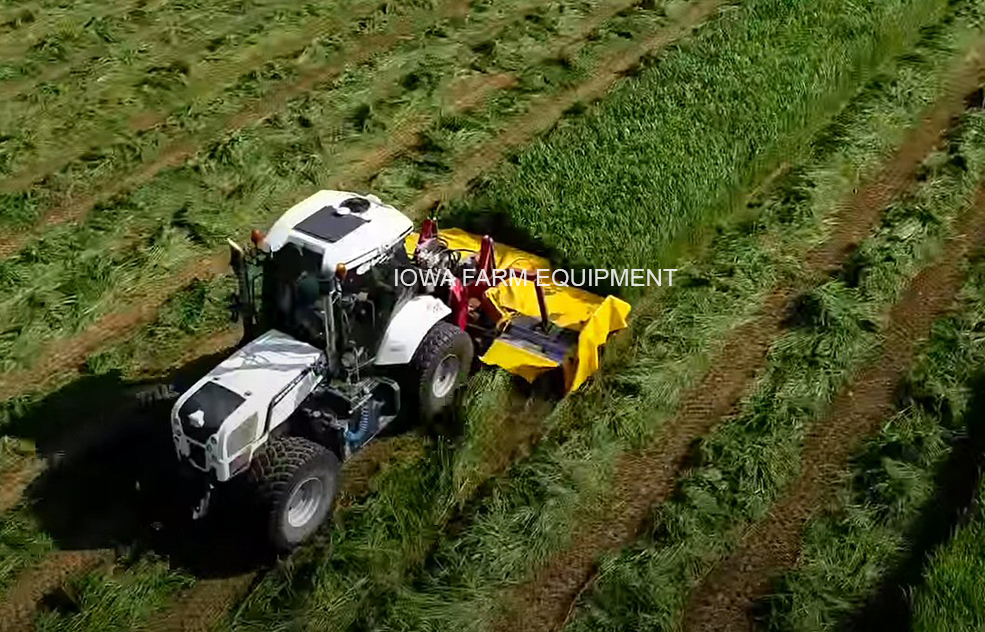

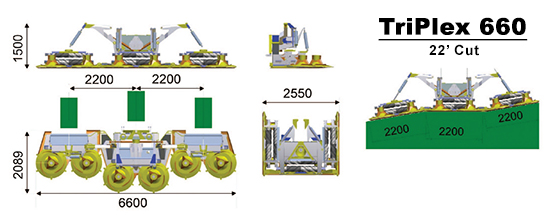

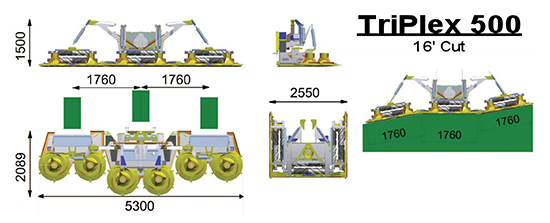

With Cutting Widths of 16’ & 22’, BETTER TRACTORS Make A Comfortable & Efficient Windrower!
This Windrower Is Easy To Access, Easy To Operate, Easy To Transport, Easy To Store & Easy To Afford.
Our Tractors Make Windrowing Great Again!
Tractor Joystick Controls: Ground Speed, 3-Point Control & Rear Hyd Outlets Operation!
Durable & Fantastic Tractors That Work For You!
After Sales 'Service & Parts Support’ is Centrally Located in Iowa: Right in the Center of Our Beautiful Country!
