NARDI Professional Series Precision Vacuum Planters

4 Row 'Conventional' & 'No-Till' In Stock!

Easy, User Friendly ‘Tool Free Adjustments’ Allows All Working Adjustments To Be Made In The Field!
PTO Driven Vacuum Pump Eliminates Need For Hi-Flow Hydraulic Systems,
Accommodating The Use Of Most Any Tractor!
Easy To Use, Easy To Handle, Easy & Visible Service of Mechanical Ground Drive System!
Equipment That Works For You!!!

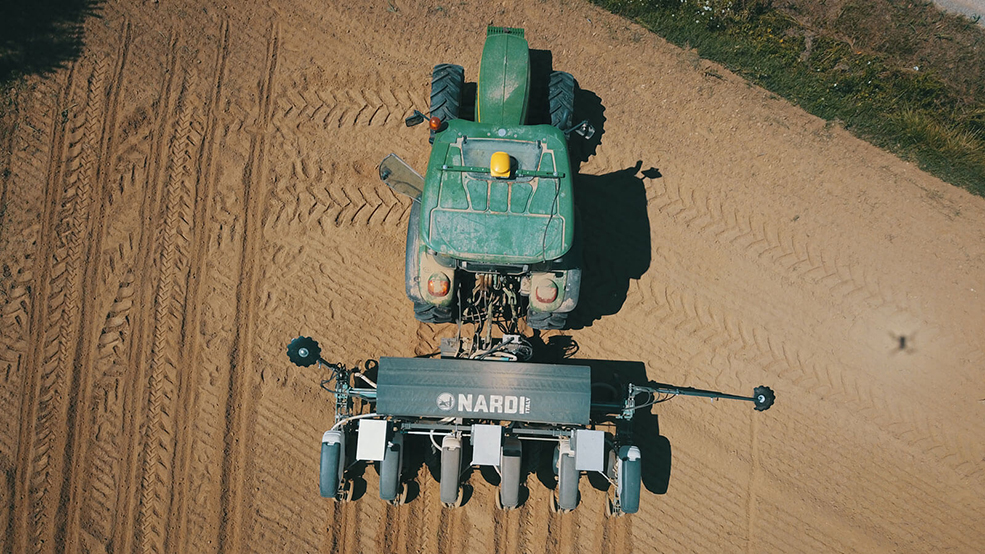

NARDI Professional ‘K’ Series ‘Conventional’ 6-Row Vacuum Planter Shown with Micro-Granular & Standard Fertilizer Hoppers.

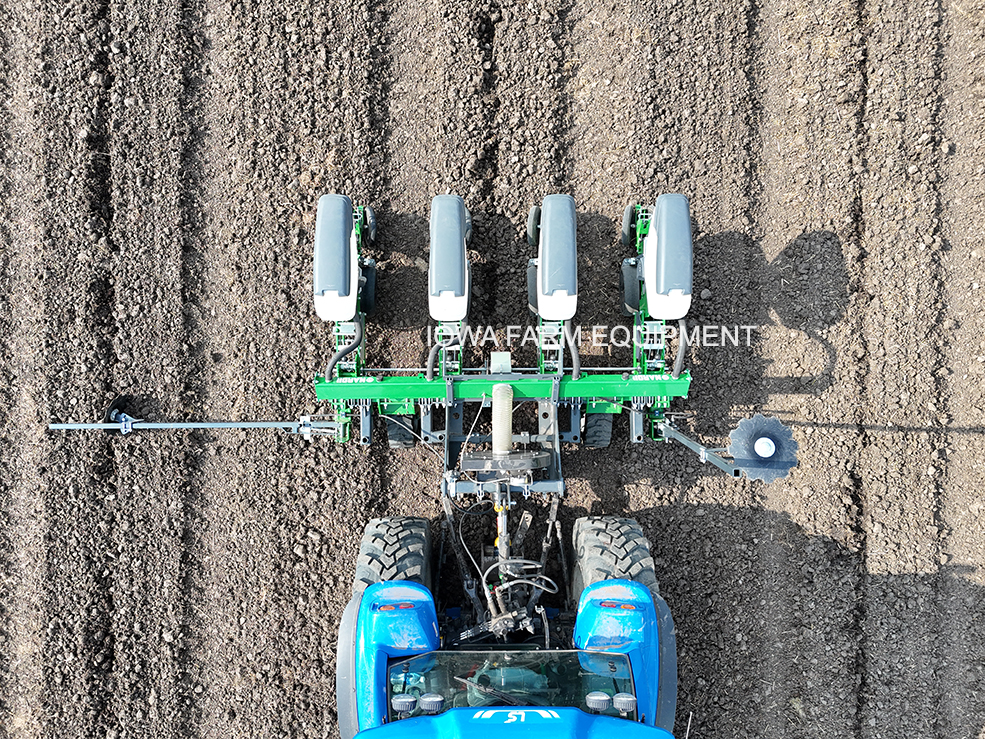

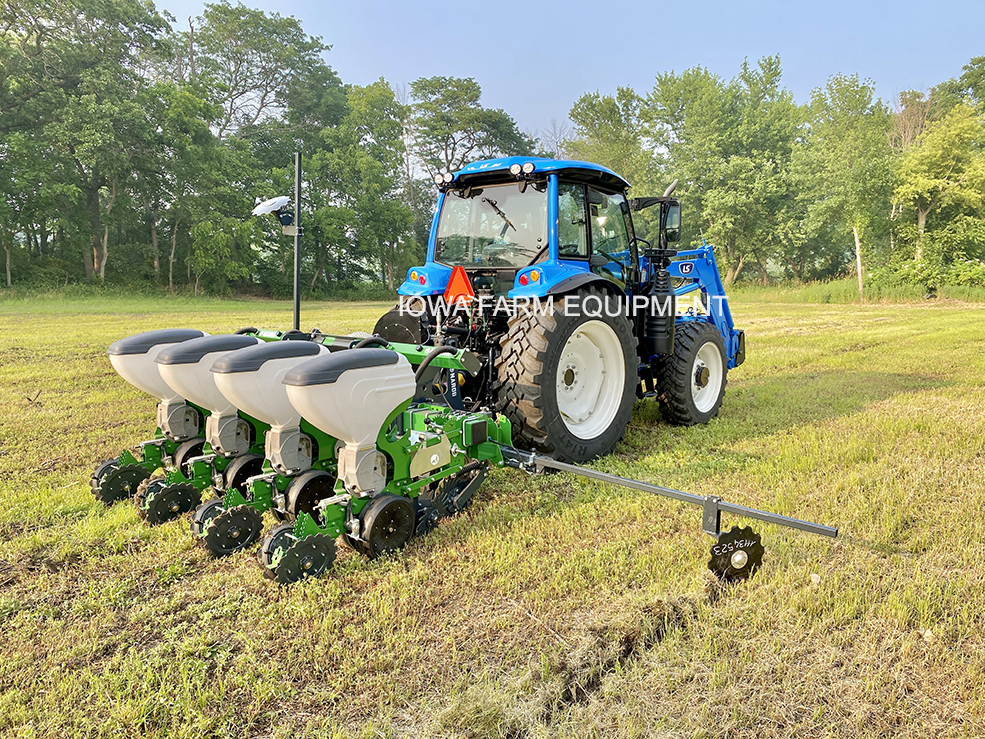

Hydraulically Operated Row Markers are Standard on all ‘K’ Series Nardi Planters.
NARDI Professional ‘K’ Series ‘Conventional’ 6-Row Vacuum Planter Shown with Micro-Granular & Standard Fertilizer Hoppers.
Hydraulically Operated Row Markers are Standard on all ‘K’ Series Nardi Planters.

NARDI’s Professional ‘K’ Series Planters Offer the Advantages of Vacuum Planters for use on most any Tractor.
With the PTO Powered Vacuum Pump, and Mechanical Ground Drive Operation, you can use smaller,
and even older Tractors with lower hydraulic flow rates and only one set of hyd outlets are required (for the Row Markers)!
NARDI Vacuum Planters have Provided Excellent Results in The Best or Worst Soils,
and in any Terrain Conditions (even on Raised Beds) for Decades!
The Durable & Manageable weight of each Row Unit, as well as the Durability & Manageable weight of the Entire Planter,
makes NARDI Vacuum Planters Easy to Handle in the Shop or in the Field!
Nardi Series Vacuum Planters:
Efficiency with Excellent Germination Results along with a Low Maintenance Life of Ownership!

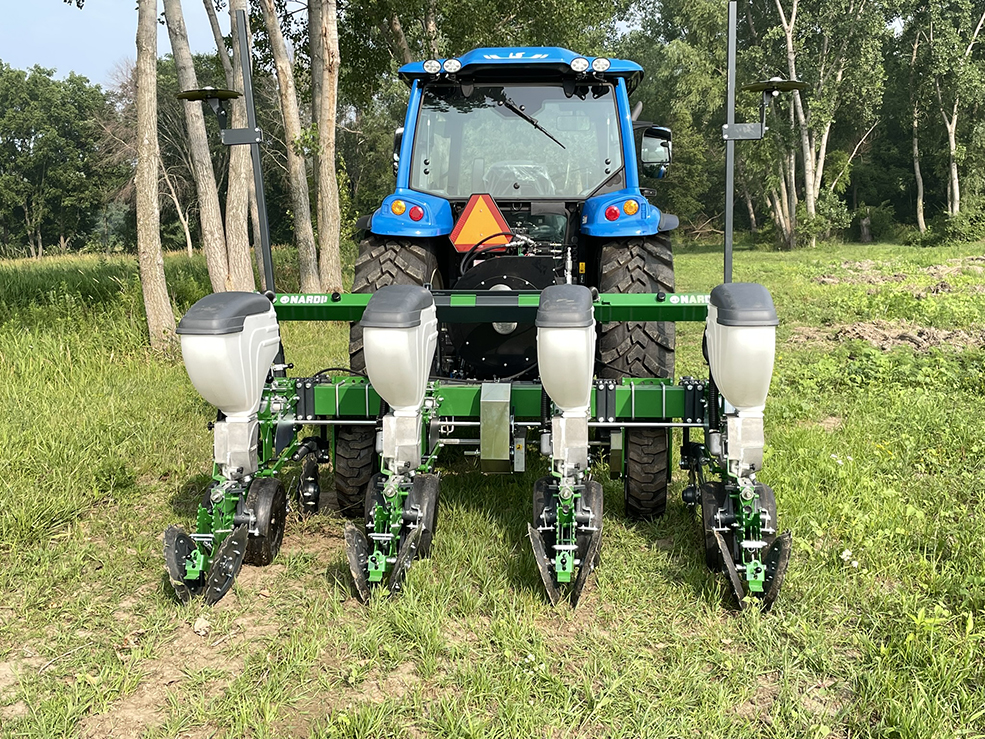

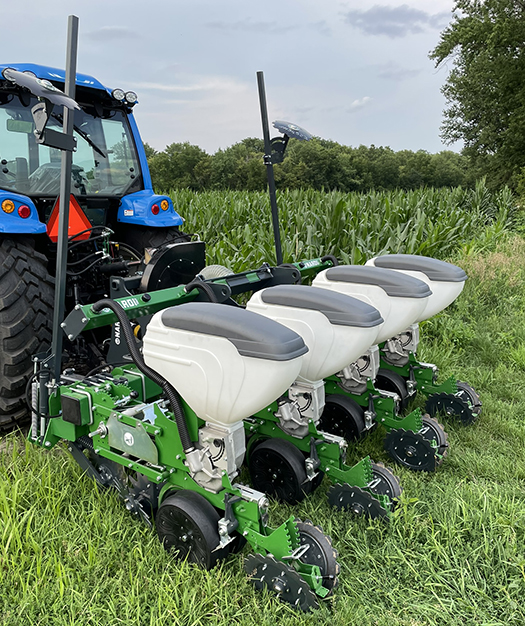

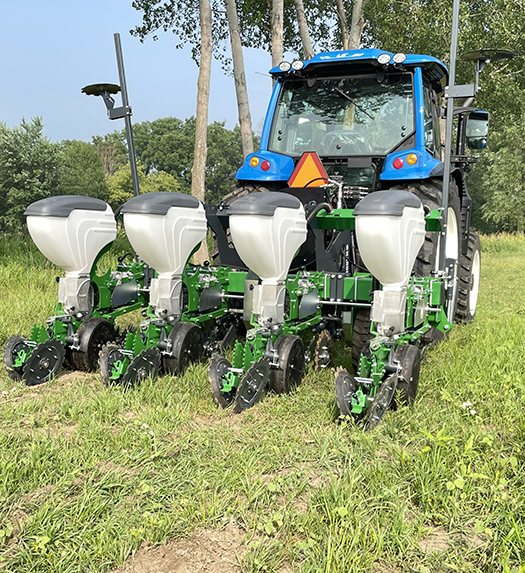

NARDI Professional ‘K’ Series 4-Row, ‘No-Till’ 3-Point Vacuum Planter with 30” Row Spacing.
The ‘K’ Series 4-Row 3-Point Planter is Kept in Stock in ‘Conventional’ & No-Till Configurations.

STANDARD FEATURES:


NARDI Professional ‘K’ Series 4-Row, ‘No-Till’ 3-Point Vacuum Planter with 30” Row Spacing.
The ‘K’ Series 4-Row 3-Point Planter is Kept in Stock in ‘Conventional’ & No-Till Configurations.
NARDI Professional ‘K’ Series 4-Row, ‘No-Till’ 3-Point Vacuum Planter with 30” Row Spacing.

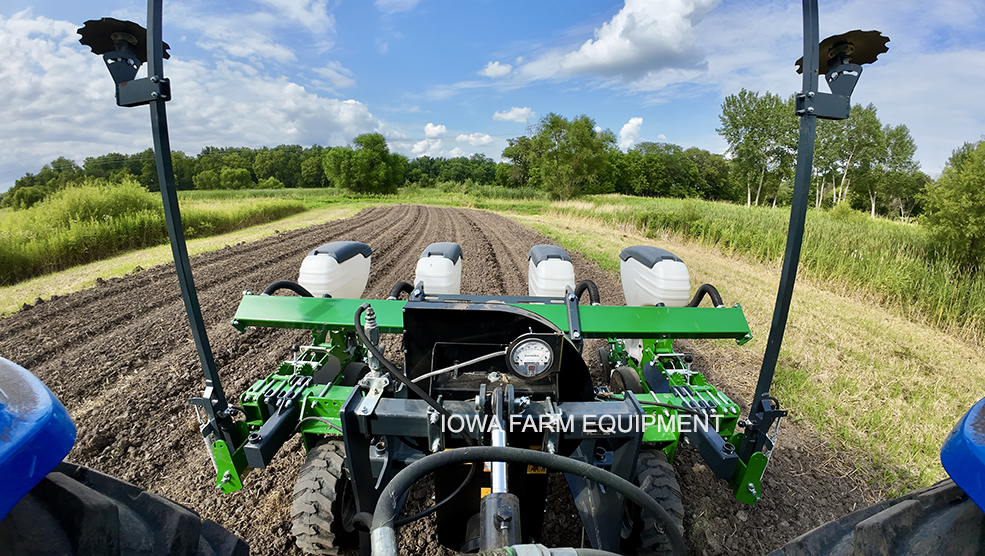

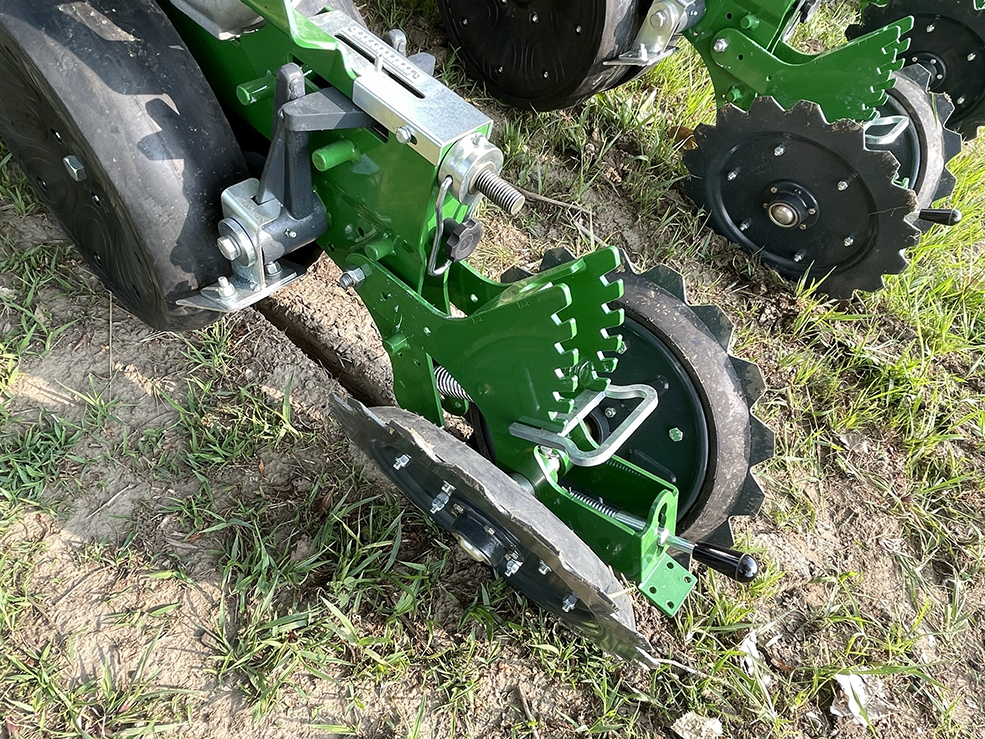

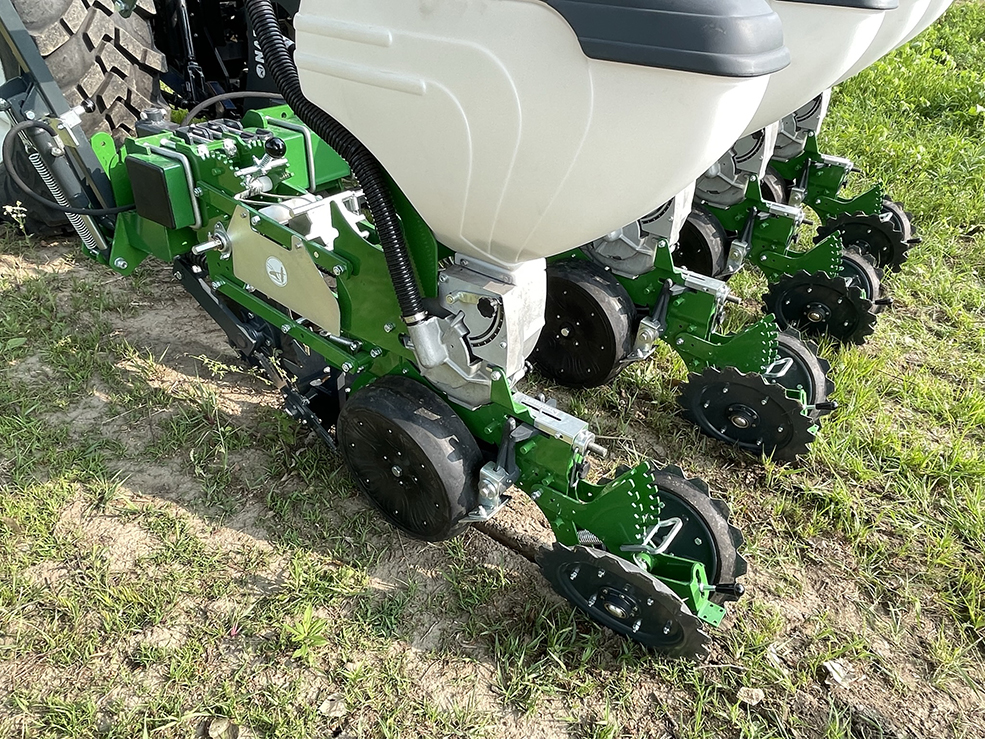

Perfect Seed Opening Trench, Closed Perfectly with Moderate Compaction via Nardi’s Adjustable Closing Disc’s.
Perfect Seed Opening Trench, Closed Perfectly with Moderate Compaction via Nardi’s Adjustable Closing Disc’s.

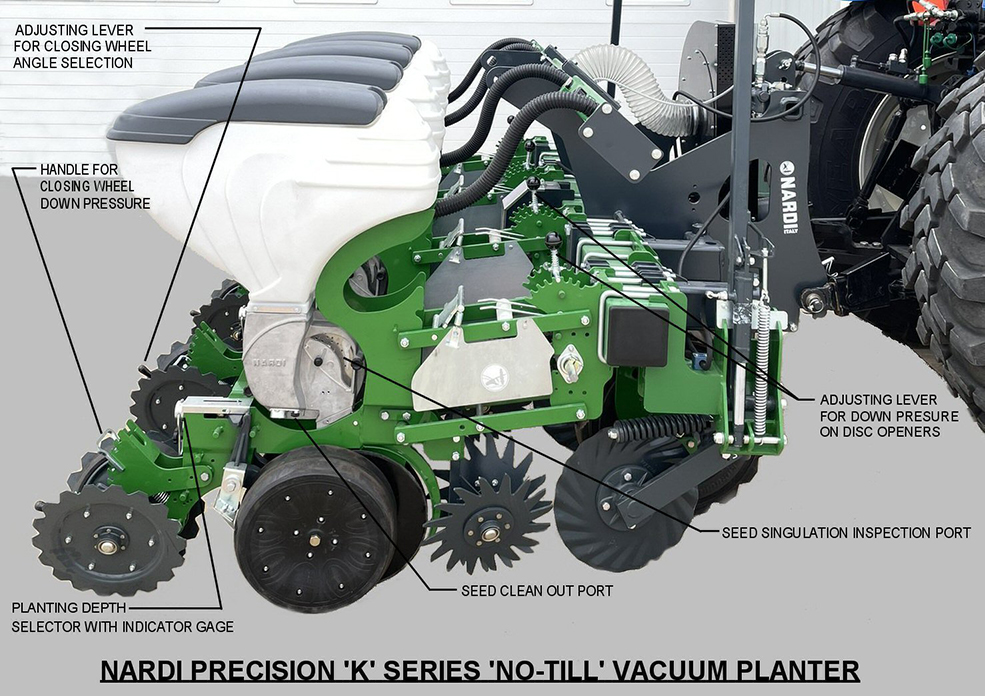

NARDI Series ‘K’ Precision Vacuum Planter with ‘No-Till’ Components
Shop or Field Adjustable ‘Tool Free’ Planting Settings

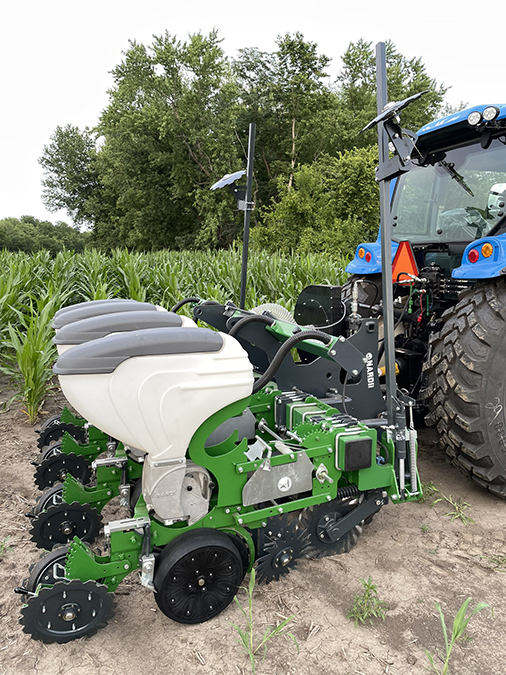

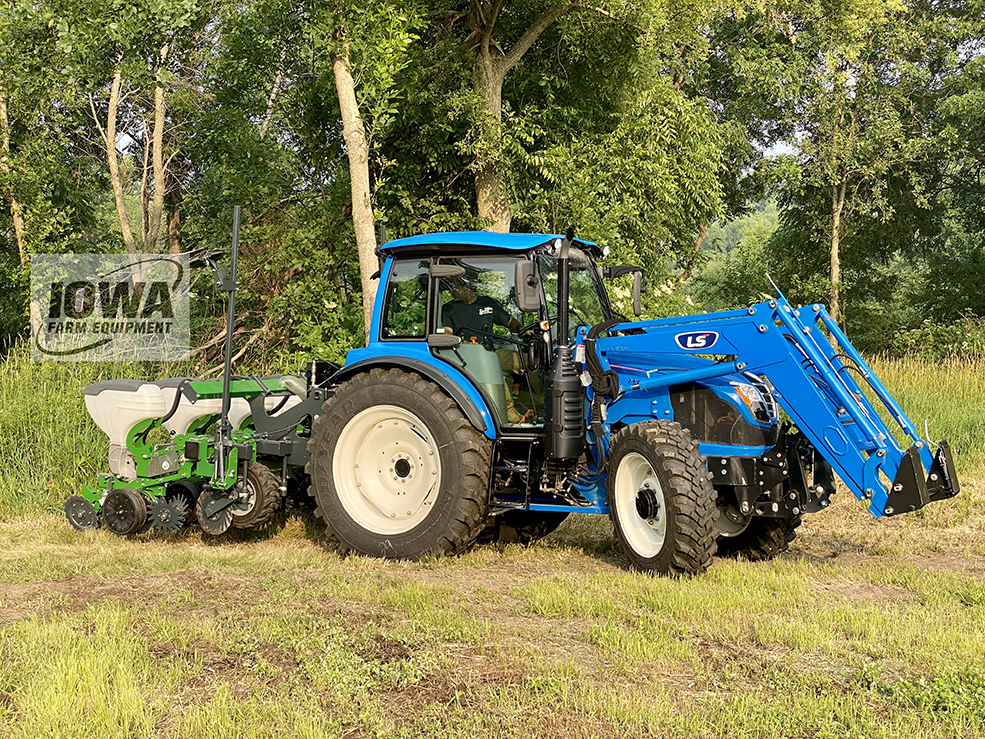

NARDI 4-Row No-Till Vacuum Planter Shown on 101HP LS Tractor


NARDI 'K' SERIES SPECIFICATIONS
MODEL K250-4 K410-6 K470-7 K570-8 K860-12
Qty. Row Units @ 30" Spacing 4 6 7 8 12
Min./Max. Spacing 18" to 8'-0"+
Note: Row Spacing Can Be Increased By Locking Out Individual Row Units
Tool Bar Width (Overall Machine) 8'-2" 13'-5" 15'-5" 18'-8" 28'-3"
Note: Above Dimensions Based on 30" Rows - Narrower and Wider Row Spacing Available
Seed Hopper Capacity 1.56 Bushels
Weight, lb's 2,194 2,811 3,109 3,858 6,195
Tractor HP Range 50-150HP 70-150HP 85-150HP 95-175HP 160-250HP
Weights are Less Pallets, Crates & PTO Shaft.
NARDI 'K' SERIES SPECIFICATIONS
MODEL K250-4 K410-6 K470-7 K570-8 K860-12
Qty. Row Units @ 30" Spacing 4 6 7 8 12
Min./Max. Spacing 18" to 8'-0"+
Note: Row Spacing Can Be Increased By Locking Out Individual Row Units
Tool Bar Width (Overall Machine) 8'-2" 13'-5" 15'-5" 18'-8" 28'-3"
Note: Above Dimensions Based on 30" Rows - Narrower and Wider Row Spacing Available
Seed Hopper Capacity 1.56 Bushels
Weight, lb's 2,194 2,811 3,109 3,858 6,195
Tractor HP Range 50-150HP 70-150HP 85-150HP 95-175HP 160-250HP
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice

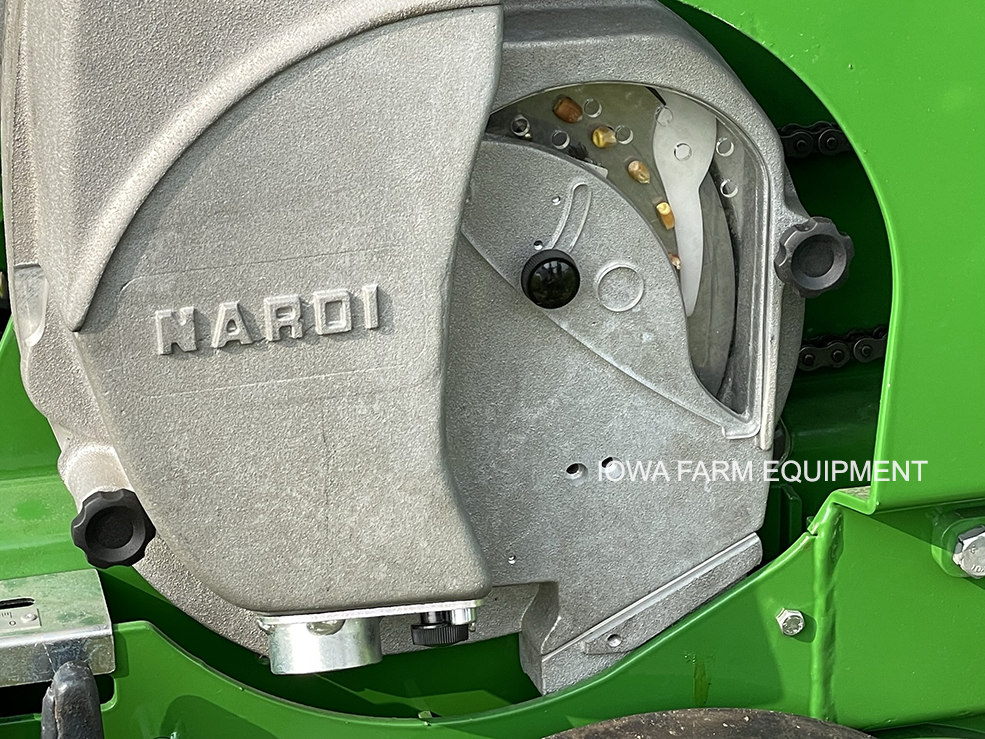

Available Seed Discs Are Listed Below:
(Not Limited to This List)
