OMARV Severe Duty 'FFM' Series Professional Folding Flail Mowers
OMARV Folding Flail Mowers with 1000RPM Gearbox For 110-250HP Tractors: All The Best Features, Superior Cuts & Safest Operation, Make Them The Best Performing & Most Efficient Flail Mower!
OMARV Commercial Flail Mowers Provide A Better Finish Cut Than Rotary Finish Mowers, They Provide A Better Rough Cut Than Rotary Rough Cut Mowers & They Produce These Superior Results In An Efficient Single Pass!!!

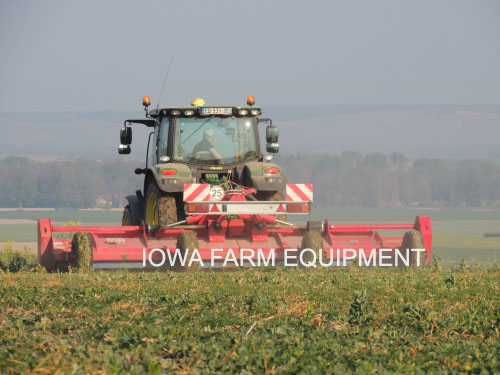

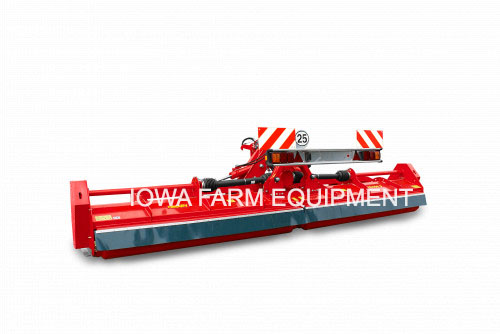

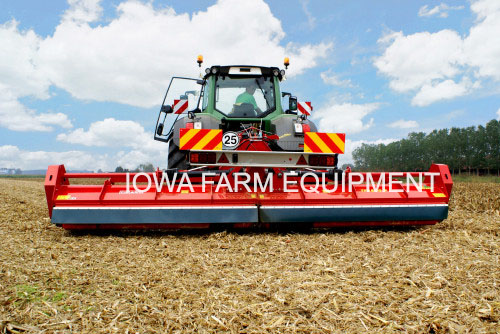

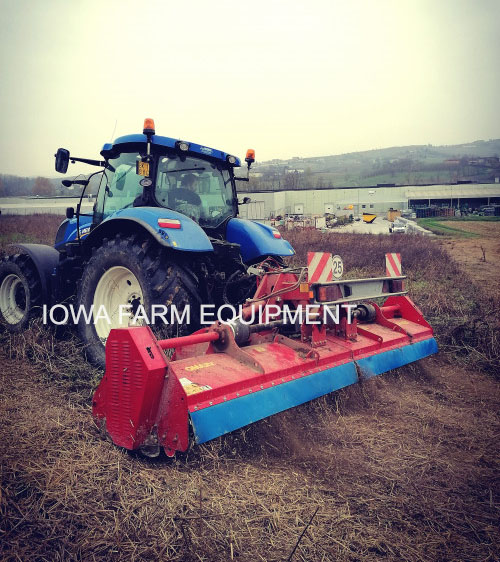

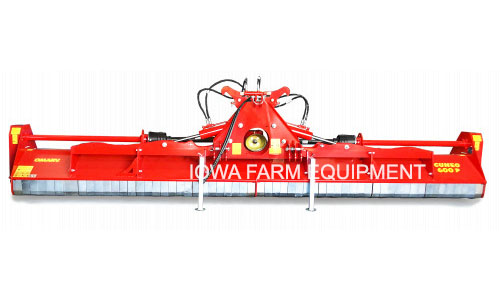

OMARV 3-Point Folding Flail Mower for 110-250HP
The 'FFM' Series 3-Point Folding, Multi-Purpose Professional Flail Mower/Mulcher, Perfect For Grass, Straw, Vegetable and Produce Residue, Bushes and Shrubs, Corn Stalks, Thick Weeds and Brush, Branches, Prunings and Small Trees Up To 3". Foldable for Easty Transportation, For Rear Mounting on Tractors with 110 to 250HP.
1000RPM Gearbox.
CAT 2/3 3-Point Hitch.
2 Counter Knives.
Adjustable Skid Shoes.
Self-Cleaning Roller with Double Roller Bearings.
Gearbox with Freewheel.
Automatic Belt Tightener & Centralized Greasing.
Rotor Diameter:
Models 360P-480FFM: 7"
Models 520P-640FFM: 9"
Rotor Speed: 1850RPM
Roller Diameter: 9"

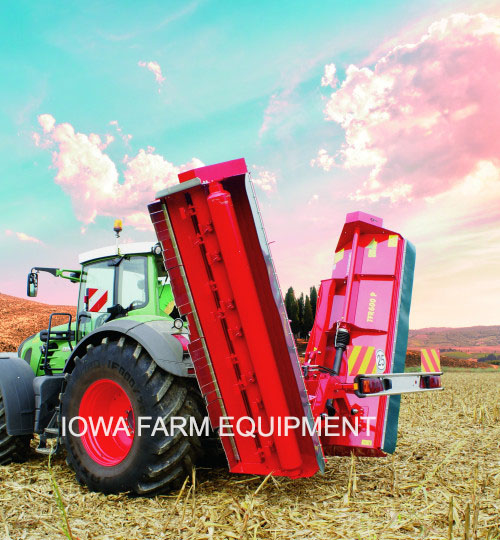

Mechanical Locking For Transport.
Copied from 'C' Series Page:

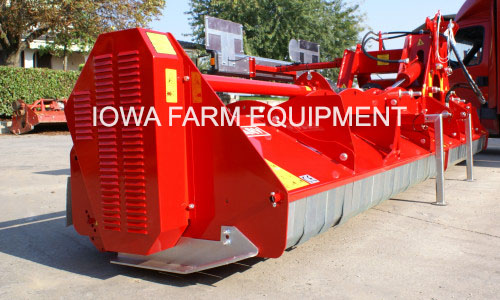

Double Chassis.

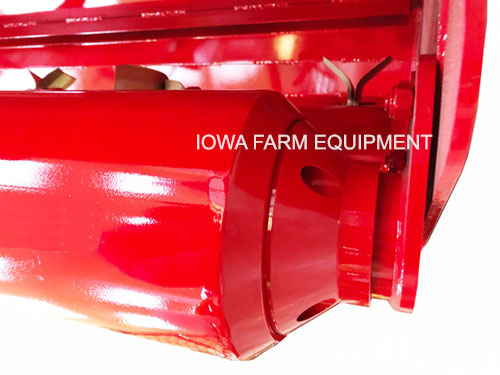

Adjustable Roller with Orientable Bearings.
Centralized Greasing System.
Automatic Belt Tensioning.
Adjustable Cutting Height.
Multi-Point Lubrication Manifold Eliminates The Need To Remove The Belt Cover For Lubrication.
Externally Mounted Gearbox Provides Maximum Reach.
Gearbox Includes Overrunning Clutch For Easy PTO Shaft Alignment & Smooth Freewheel Shutdown.

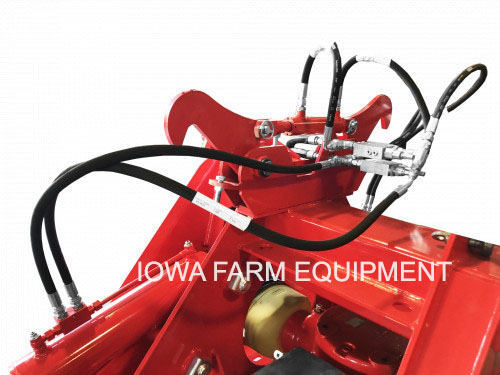

Lateral Hydraulic Movement with Mechanical Locking System.
Shock Absorbing Oleo-Pneumatic Accumulator.
Actual Video Coming Soon, But Expect Functionality & Performance To Be Identical.
OMARV 'FFM' SERIES SPECIFICATIONS
MODEL
360FFM
400FFM
440FFM
480FFM
520FFM
560FFM
600FFM
640FFM
Horsepower
110 - 140HP
130 - 165HP
150 - 225HP
170 - 250HP
Working Width
11'-10"
13'-1"
14'-5"
15'-9"
17'-1"
18'-4"
19'-8"
19'-8"
Overall Width
13'-1"
14'-5"
15'-9"
17'-1"
18'-4"
19'-8"
21'-0"
22'-4"
Folded Width
8'-2"
Number of Hammer Blades
36
40
44
48
52
56
60
64
Number of Knife Blades
72
80
88
96
104
112
120
128
Belts SPBX
8
10
Cutting Capacity
3"
Hitch
CAT 2 / 3
Weight
4,145 lb's
4,464 lb's
4,630 lb's
5,027 lb's
5,335 lb's
5,534 lb's
5,710 lb's
5,930 lb's
Weights are Less Pallets, Crates & PTO Shaft.
OMARV 'FFM' SERIES SPECIFICATIONS
MODEL
360FFM
400FFM
440FFM
480FFM
520FFM
560FFM
600FFM
640FFM
Horsepower
110 - 140HP
130 - 165HP
150 - 225HP
170 - 250HP
Working Width
11'-10"
13'-1"
14'-5"
15'-9"
17'-1"
18'-4"
19'-8"
19'-8"
Overall Width
13'-1"
14'-5"
15'-9"
17'-1"
18'-4"
19'-8"
21'-0"
22'-4"
Folded Width
8'-2"
Number of Hammer Blades
36
40
44
48
52
56
60
64
Number of Knife Blades
72
80
88
96
104
112
120
128
Belts SPBX
8
10
Cutting Capacity
3"
Hitch
CAT 2 / 3
Weight
4,145 lb's
4,464 lb's
4,630 lb's
5,027 lb's
5,335 lb's
5,534 lb's
5,710 lb's
5,930 lb's
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
