IOWA FARM EQUIPMENT

PERUZZO TB120C PRO

Compact & Portable Powerhouse
Wood Chipper, Palm Frond Shredder
LOADED WITH ALL THE BEST FEATURES
Self-Powered, Self-Propelled, Safe & Easy To Handle Chipper!
Portable & Compact Power Feed Chipper That Packs a Punch!

SUPERIOR DRUM TYPE ROTORS ARE THE SAFEST & THE BEST!

Peruzzo TB120C PRO Staged in Working Position!
Hydraulically Powered Track Drive & Steering
Independent Track Steering
Hyd Power Roller Feed w/Auto Feed Speed Regulation
Safe & Superior Drum Type Rotor
Largest Hopper & Throat Openings
‘Single’ 25HP Engine
Easy Rotor Access For Safe & Efficient Service!
No Control Cables, No Drive Belts & All The Best Features

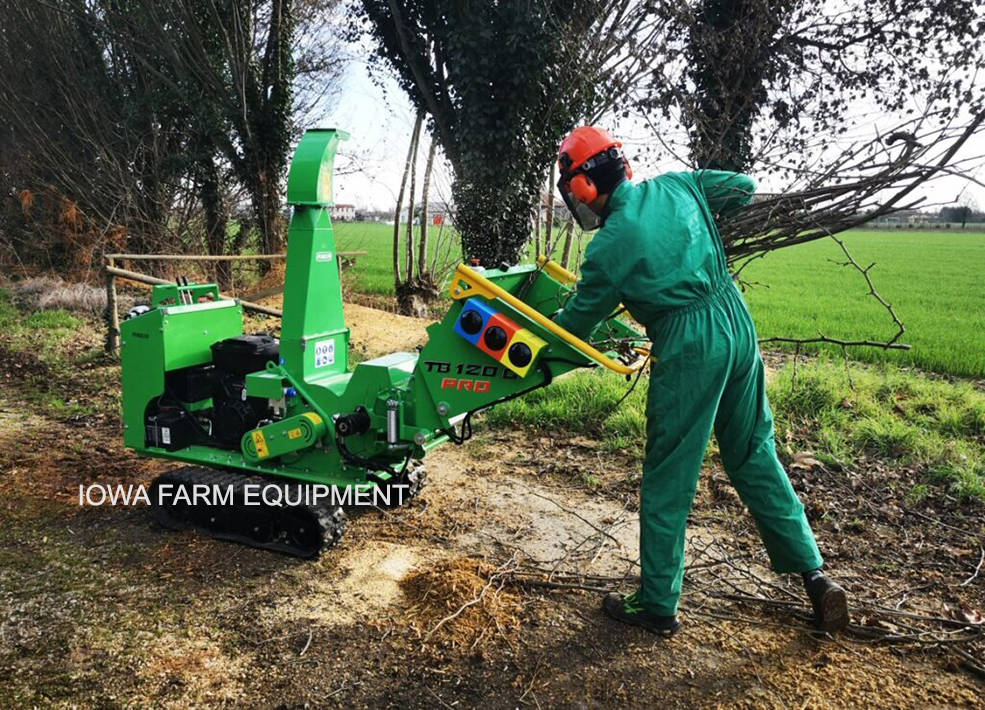

Peruzzo ‘TB120C PRO’ Wood Chipper, Palm Frond Shredder at Work!
Provides Maximum Results for Size & Capabilities!
Compact For Access Thru Narrowest Openings
3-Speed Transmission Provides Efficiency For Localized or Distant Work Areas
For Landscapers, Arborists and General Maintenance Activities!

The Compact & Dynamic Peruzzo TB100C Pro Chipper/Shredder with its Dynamic Drum Type Rotor, Complimented with Auto-Feed Regulated, Hydraulic Roller Power Feeding Performance, Provides Superior Results & Superior Safety! The Quick, Firm & Superior Capturing & Processing of Limbs, Branches, Fronds, Twigs & Other Material Eliminates the Need to Manually Force-Feed Materials, and with its High Speed Processing, Users Will Not have to Pause, and Let the Chipper Catch-Up Before Feeding the Next Load. The TB100C Pro’s Drum Rotor, Complimented with the Hydraulic Roller Power Feeding System, Also Provides Smooth & Stable Operation While Handling The Largest Branches & Other Rigid or Limp Materials, Eliminating Potential ‘Head & Face Knockers’ From 'In-The-Hopper Wobble' of Branches, Common With ‘Self-Feeding Rotor Type Chippers’. This Superior Performance is Available When Chipping & Shredding Wet or Dry Wood, Lumber & All Types of Palm Fronds (Baglow, Coconut, Date, Fan, Feathered, Kentia, Palmetto.), Lumber, etc.! With the Self-Powered, Self-Propelled & Tracked Features in a Compact Footprint, Dynamic & Unparalleled Performance is Complimented With Access Through Narrow Gates & Openings, Access & Accommodation of Restricted Work Areas, Ease of Transport & Handling, and a Delicate Footprint on Turf, Private or Commercial Lawn Areas & General Green Spaces.

STANDARD FEATURES:

Peruzzo's Drum Type Chippers Offer Superior Performance & Results, and Less Maintenance Than Rotor/Disc Style Chippers, and with the ‘Auto Feed Regulated, Hydraulic Roller Power Feed’ Performance, It's as Efficient & Stable as Possible!
- Watch the Embedded Video & Observe the Swift & Stable ‘Auto Feed Regulated, Hydraulic Roller Power Feed’ System: The Stable Holding of Branches as they Pass Thru the Hopper, The Stable Condition of the Chipper Itself, and the Smaller & Uniform Size of the Chips.
  - Unlike the Self-Feeding Rotor/Disc Style Chippers, This Peruzzo 'Drum' Style Chipper is The Safest Chipper; Not Allowing Violent Movement of Limbs & Branches During The Intake/Feeding Process, Which is Common with Rotor Type Self-Feeding Chippers, and Which Creates a Potential for Head Knockers, Eye Pokers, etc!
Chippers' Hopper Opening is 22" Wide x 18" Tall.
Chippers' Ultra-Wide Throat Opening is 6.5" Tall x 12.5" Wide, Which Enables the Worst, Most Serpentine & Clumsy Pieces to be Fed Thru, and Reduces Chainsaw Work, and Minimizes Clogging.
- This Large Throat Opening Accommodates Chipping Dimensional Lumber, Cane Type Plants & Shrubs, Palm Fronds, Cactus Leaves & Other Vegetation!
A 12" Wide Throat is The Widest Throat Opening Available for a 4" Chipper. In Fact, Typically, You'd Have to Get a 7" Chipper to Get a 12" Wide Throat Opening.
Chipper’s Drum Style Rotor Has 2 Double Sided, Hardened Tool Steel Presharpened Blades.
Red Mushroom Push Button Kill Switch on Top of Feed Hopper.

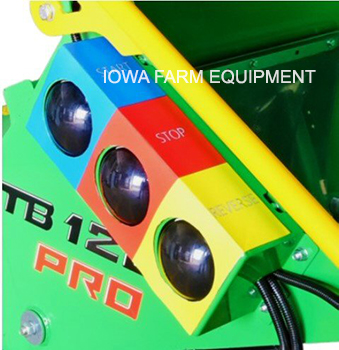

Yellow Feed Control & Safety Handle Around Circumference of Hopper Opening, for the Following Functions:
- OFF – Feed STOP!
- Forward (Feed)
- Reverse (Back-Out)
Transmission Has 3 Forward & 1 Reverse Speed, With Clutch Free Manual Lever Selection.
Discharge Chute Rotates 360° and Has an Adjustable Deflector.
Tracks Are Hydraulically Powered and Operated Independently For Precise & Infinite Maneuvering – See Image of Operator Control Panel For Reference.

Peruzzo TB120C PRO Folded Into Transportation Position!
Portable, Compact & Balanced For
Safe & Efficient Trailer Loading & Unloading
& Moving From Place to Place at The Worksite!

Peruzzo TB120C PRO Unfolded For Quick & Easy Rotor Access!
Safe & Efficient Inspection & Service of Heavy Duty Rotor & Blades!

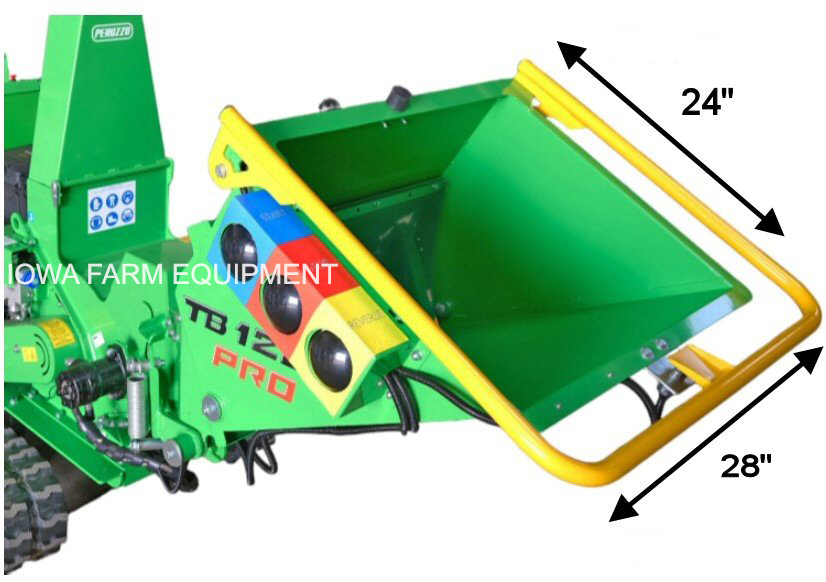

Peruzzo TB120C PRO: Largest Hopper Opening
For Ease Of Loading & For Reduced Resistance
Of The Fullest Clusters of Brush & Branches!

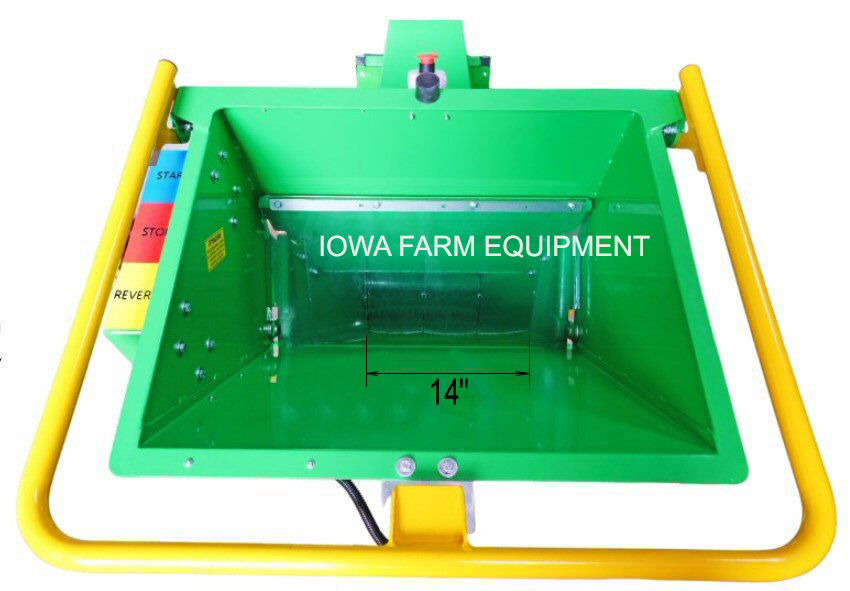

Peruzzo TB120C PRO: Largest Throat Opening
For Serpentine Branches & Mixed Clusters.
Quick & Easy Access To The Emergency
Stop Bar Around Hopper Circumference!

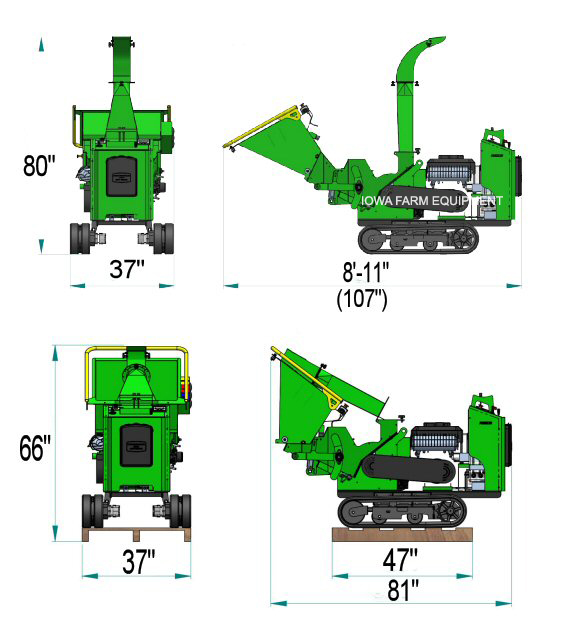

Peruzzo TB120C PRO Overall Dimensions:
Compact & Balanced For Safety & Ease Of Access Thru
Narrow Gates & Other Restricted Openings
& Also For Ease Of Trailering!

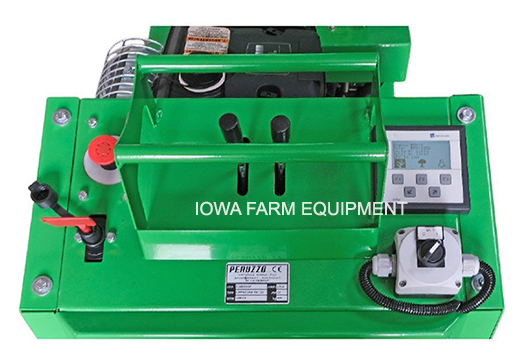

Mushroom Button E-Stop
Removable Electrical Isolation Key:
- With Rubber Weather Guard Cap
Dual Lever Independent Track Controls:
- Left Lever Left Track, Right Lever Right Track
- Forward – Stop - Reverse
LED Display & Keypad Interface For Auto-Feed Sensor

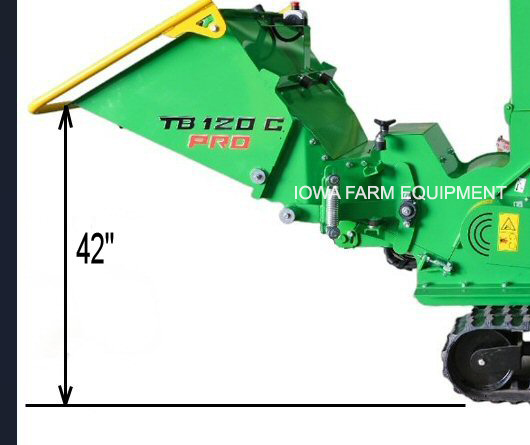

Peruzzo TB120C PRO Hopper To Grade Dimension of
42” Height Provides Ergonomic Accommodation
w/o Compromise To Steep Feed Chute Angle
Which Can Prevent Material From Falling Back Out!
More Professional Efficiency with Safety & Ease Of Use!
EQUIPMENT THAT WORKS FOR YOU!

Peruzzo TB120C PRO Wood Chipper, Palm Leaves Shredder's
Large Hopper Opening & Steep Feed Chute Work Together
To Work With You With Any Materials You Need To Chip & Shred!

TB100C PRO SPECIFICATIONS
Engine	Electric Start 25HP Key Start US Made Honda Gas Engine
Blades	2 Double Sided Hardened Tool Steel Blades
Max Chipping Diameter	5"
Throat Opening	6.5" T x 12.5" W
Drum Size	6" x 12" W
Hopper	18" T x 22" W x 42" D to Blades
Track Dimensions	7.25" W x 36" L 26" Outside to Outside of Tracks, Widest Point of Chipper
Overall Length	7' From End of Handles to Deflector (folded down)
Overall Height	With Chipper on Ground, 42" to Bottom of Hopper Feed Shelf 65" From Grade to Tip of Deflector, As Shown in Photos
Overall Weight	1,320 lb's
Cutting Head Weight	53 lb's

TB100C PRO SPECIFICATIONS
Engine	Electric Start 25HP Key Start US Made Honda Gas Engine
Blades	2 Double Sided Hardened Tool Steel Blades
Max Chipping Diameter	5"
Throat Opening	6.5" T x 12.5" W
Drum Size	6" x 12" W
Hopper	18" T x 22" W x 42" D to Blades
Track Dimensions	7.25" W x 36" L 26" Outside to Outside of Tracks, Widest Point of Chipper
Overall Length	7' From End of Handles to Deflector (folded down)
Overall Height	With Chipper on Ground, 42" to Bottom of Hopper Feed Shelf 65" From Grade to Tip of Deflector, As Shown in Photos
Overall Weight	1,320 lb's
Cutting Head Weight	53 lb's

Specifications & Designs Are Subject to Change Without Notice
