Double Hitch & Feedthru Gearbox For Front or Rear 3-Point Mounting, 12" Left & Right Offsetable
Front 3-Point Mounted Elk 1800 & Rear 3-Point Mounted Elk 1600 Both With Gage Wheels and 12" Left & 12" Right Offset
Peruzzo Elk Flail Mowers & Pruning Shredders
Peruzzo’s Elk Series Flail Mowers are Engineered to Produce Excellent Results in Any Application: For Fine, Carpet Like Grooming & Manicuring of Professional & Commercial Turf, as well as Mowing in the Most Demanding, Tallest & Thickest Stands of Vegetation! With It’s Universal Design, We Have Some Customers Grooming Golf Course Fairways & Mowing the Rough, Some Grooming Large Estate & Acreage Lawns, Some Maintaining Livestock Pastures, and Others Shredding ‘After Harvest’ Produce Residue & Cover Crop Termination, and Some Just Finish Mowing Their Large Lawns – All With The Same Standard Hammer Blades! To Achieve as Even, Flat & Level Cut as Possible, Consider Using The Front Gage Wheels & Standard Hammer Blades with the Top Link Attached to the Oval Pin Hole! In Applications For Shredding Smaller Diameter Prunings in Vineyards & Orchards, the Standard Hammer Blades Will Perform Well, But For Shredding Larger Prunings, or Other Demanding Applications, the Model 1600 & 1800 Elk Flail Mowers Are Available With Larger, Heavy Duty Hammer Blades (see images at bottom of page).
Elk 1800 On An Amphibious Carrier Performing Right of Way & General Land Clearing Maintenance, in Swampy Land Clearing Applications by The US Army Corp of Engineers!

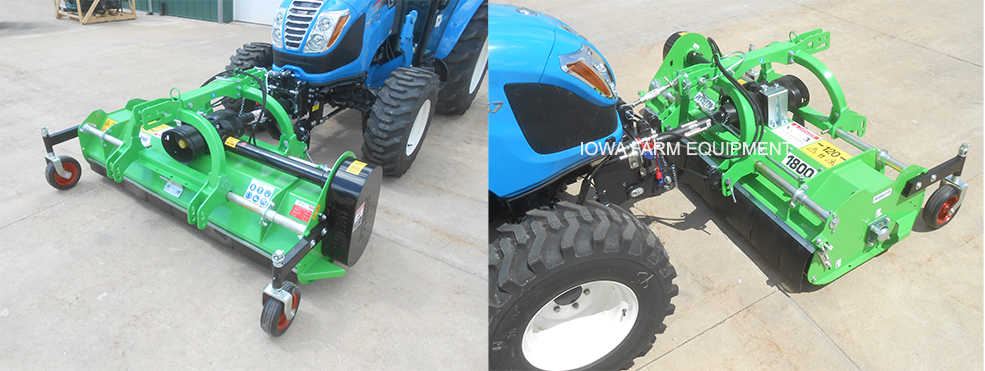

Rear Mounted Elk 1600 & Front Mounted Elk 1800

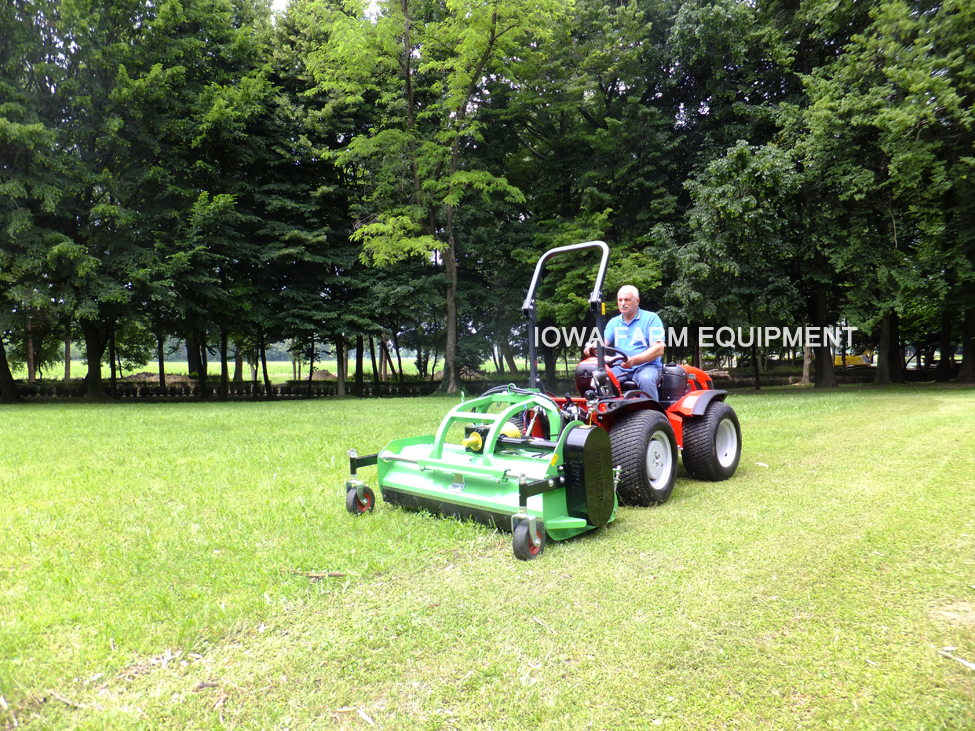

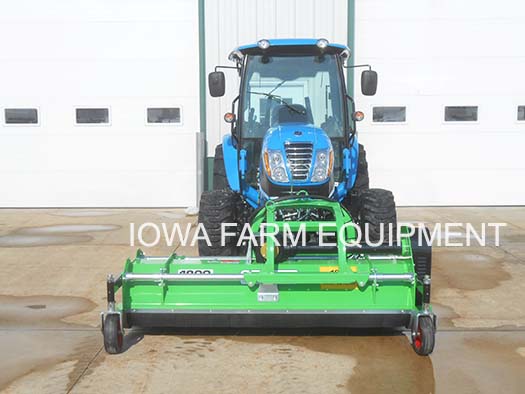

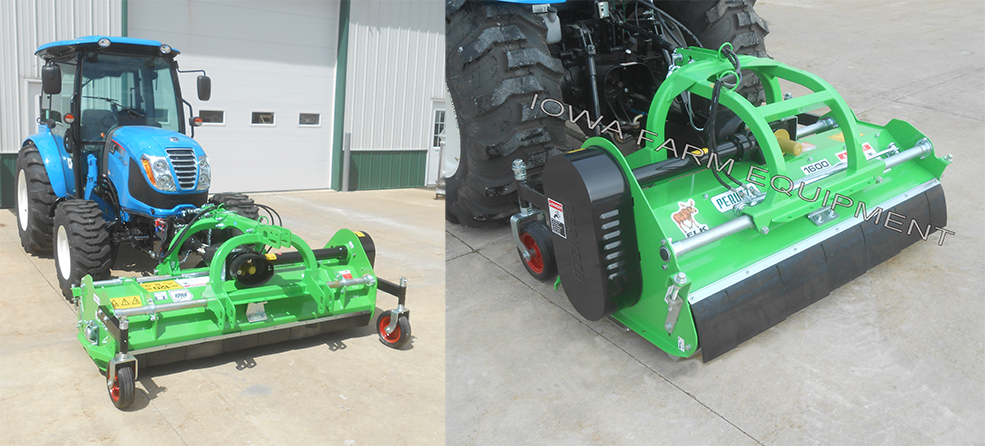

Front Mounted Elk 1800 with Gage Wheels

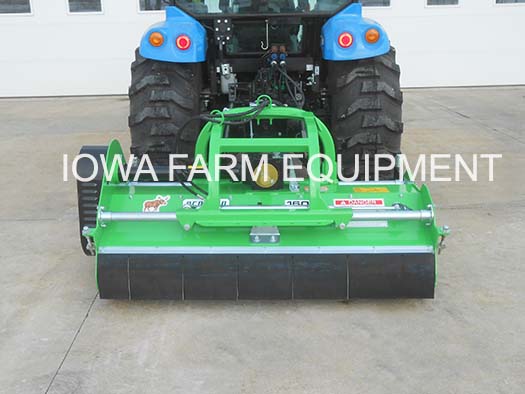

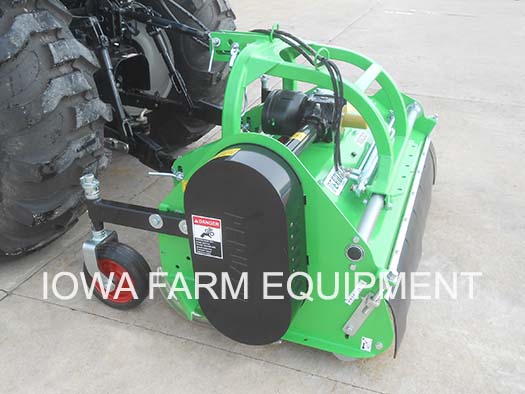

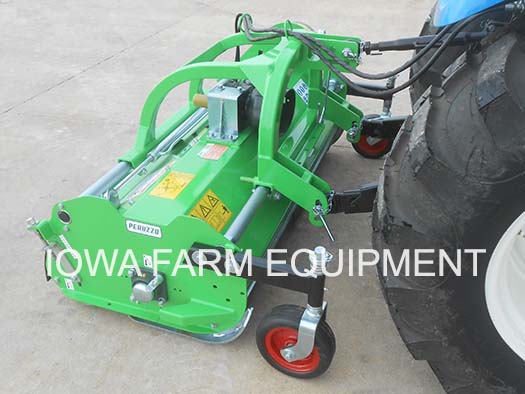

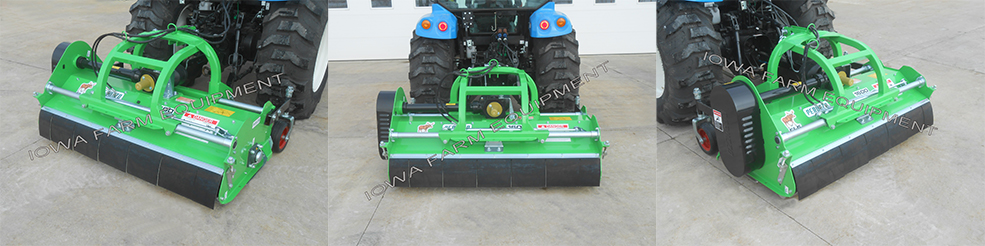

Rear Mounted Elk 1600 with Gage Wheels (Reversible Hitch Has Been Replaced with Double Hitch & Feedthru Gear Box As Shown on Front Mounted Elk 1800 Above & Below)

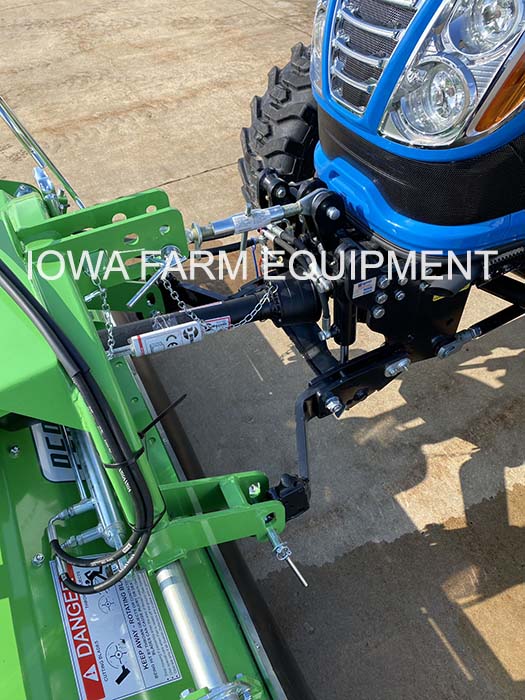

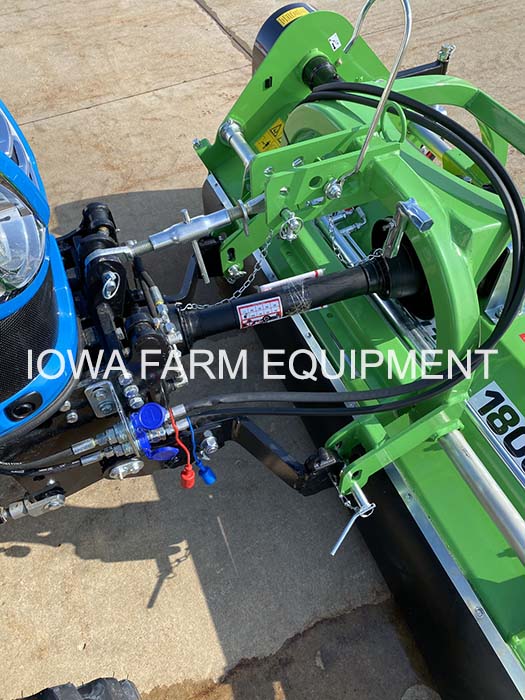

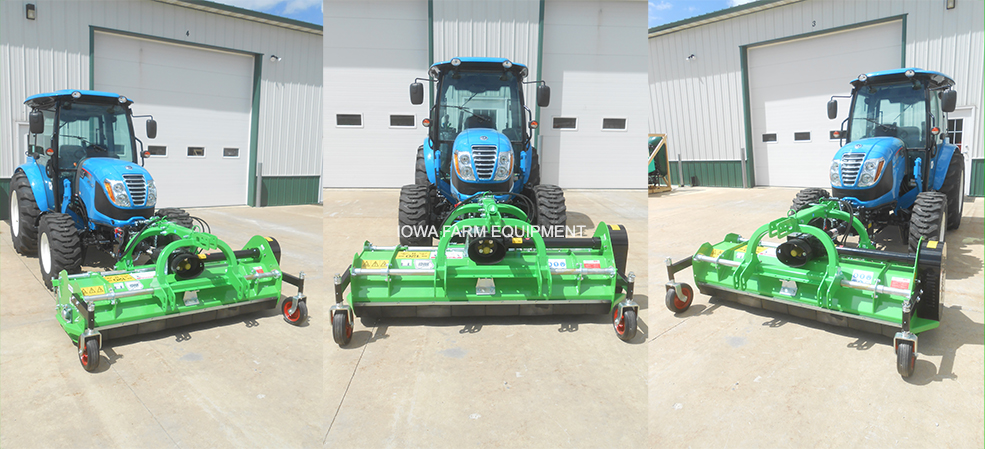

Front Mounted Elk 1800 with Double Hitch & Feedthru Gearbox

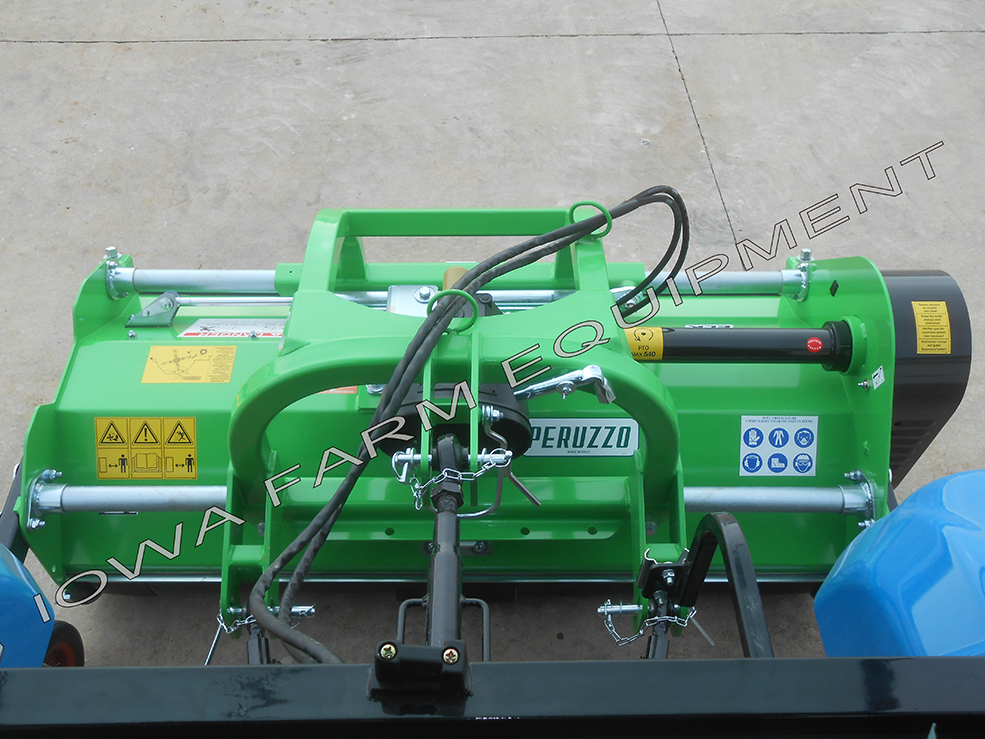

Top View of Elk 1600

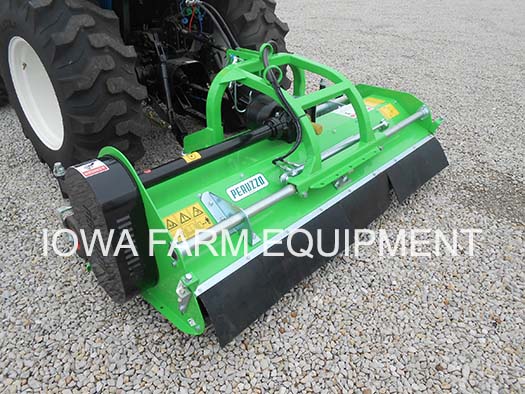

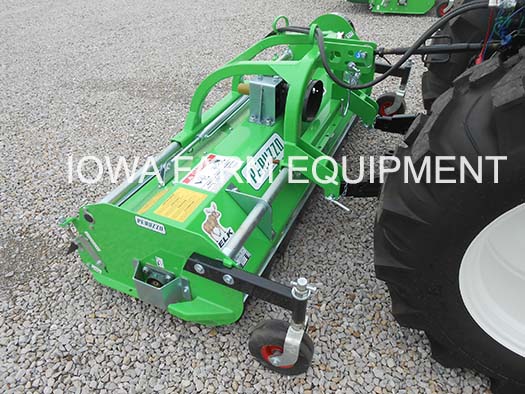

Elk 2000 Flail Mower Offset to Left & Right
ELK SERIES SPECIFICATIONS
MODEL
ELK 1600
ELK 1800
ELK 2000
Horsepower
30-60 HP
40-70 HP
40-80 HP
RPM
540
Double Hitch
Cat 1 & 2
Working Width
60"
72"
79"
Overall Width
72"
84"
91"
Overall Length
44"
Overall Height
32"
Manual or Hydraulic Offset
12" Left & Right
Quantity of Large HD Hammer Blades
20
24
N/A
Quantity of Standard Hammer Blades
48
58
64
Cutting Height
0.50" - 4"
0.25" - 3"
Weight
816 lbs.
882 lbs.
970 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
ELK SERIES SPECIFICATIONS
MODEL
ELK 1600
ELK 1800
ELK 2000
Horsepower
30-60 HP
40-70 HP
40-80 HP
RPM
540
Double Hitch
Cat 1 & 2
Working Width
60"
72"
79"
Overall Width
72"
84"
91"
Overall Length
44"
Overall Height
32"
Manual or Hydraulic Offset
12" Left & Right
Quantity of Large HD Hammer Blades
20
24
N/A
Quantity of Standard Hammer Blades
48
58
64
Cutting Height
0.50" - 4"
0.25" - 3"
Weight
816 lbs.
882 lbs.
970 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
