Valentini 'CA' Folding Series
Stone, Vegetation & Residue Buriers,
Inverters, Seed Bed Preparators
'ALL GEAR SIDE DRIVE' in Oil Bath Gear Box!
NO Belts, NO Chains - Only Excellent Results!
Valentini CA Series 7700 Folding Burier with Packer Roller

FOR 180-400HP TRACTORS

As with ALL Valentini Buriers, the ‘CA' Series is Quick-Hitch Compatible, and has been Providing Excellent Residue Burying & Surface Inversion while Achieving Superior Seed Bed Preparation & Finish Grading Results in All Types of Soils & Soil Conditions. In the sample video (below), whether it’s the Large, Deeply Packed Gravel, or the Thick Stand of Canary Grass, the Burying Results are Obvious, and this Excellent Performance is Achieved with the Efficiency of One Pass! Along with Bullet Proof Reliability, Several Options are Available to Enhance the One Pass Efficiency of the Valentini Buriers! For Ag Applications: Bed Formers/Elevated Bed Shapers, and a Variety of Rear Rollers are Available to Contribute to the One Pass Efficiency! For Grading Applications: a Variety of Rear Rollers are available, Providing Features from Working Depth Control, to Surface Compaction & Finishing/Conditioning, to Rollers for Wet/Muddy Soil Conditions.

STANDARD FEATURES:

IR 2000 Burier with Mesh Roller Inverting & Burying Thick Stands of Cover Crop

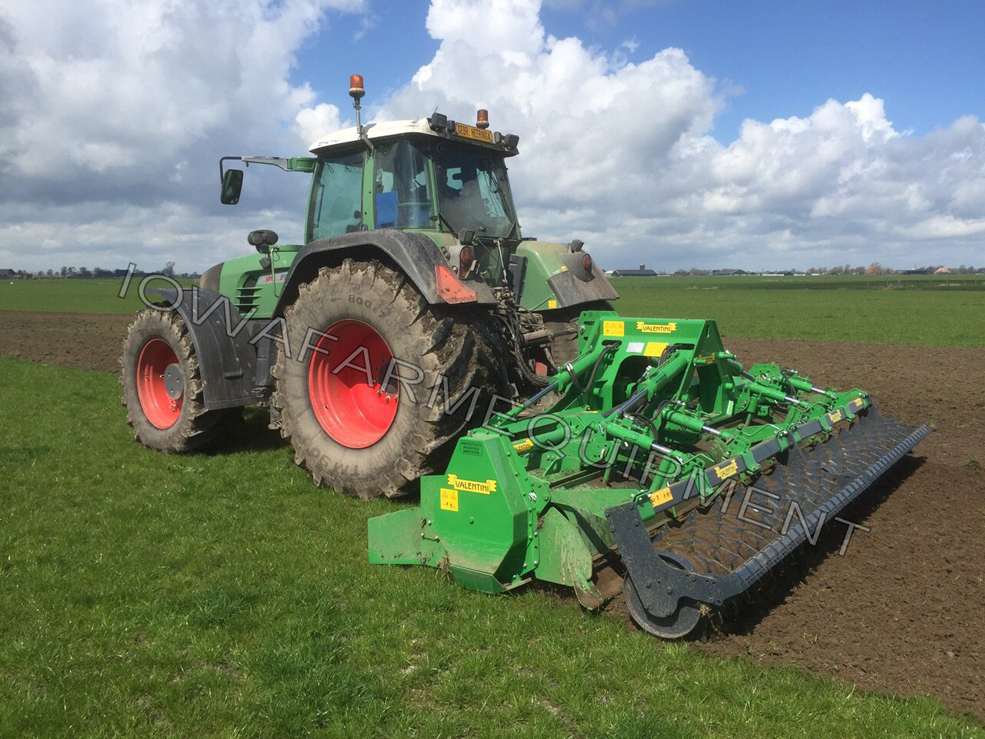

CA4700 Folding Burier with Hydraulically Adjusted Packer Roller

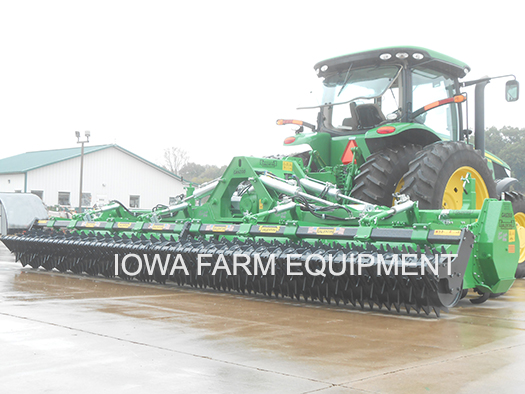

CA6200, 23’ Burier with Front Corner Discs, and also with Hydraulically Controlled Packer Roller For ‘On-The-Fly’ Working Depth Adjustment!

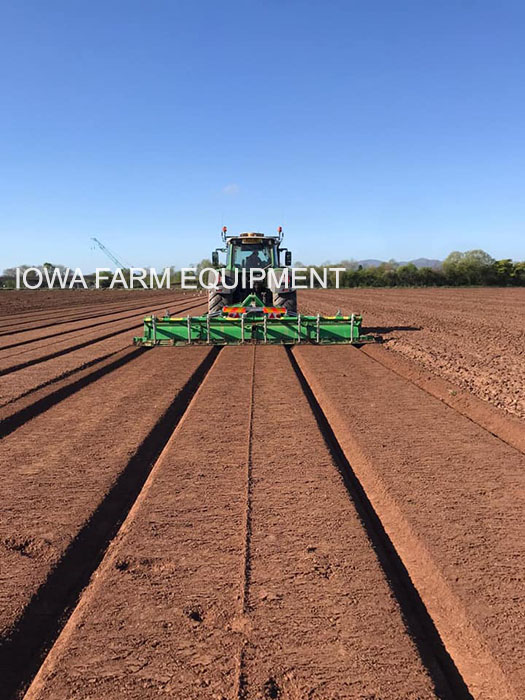

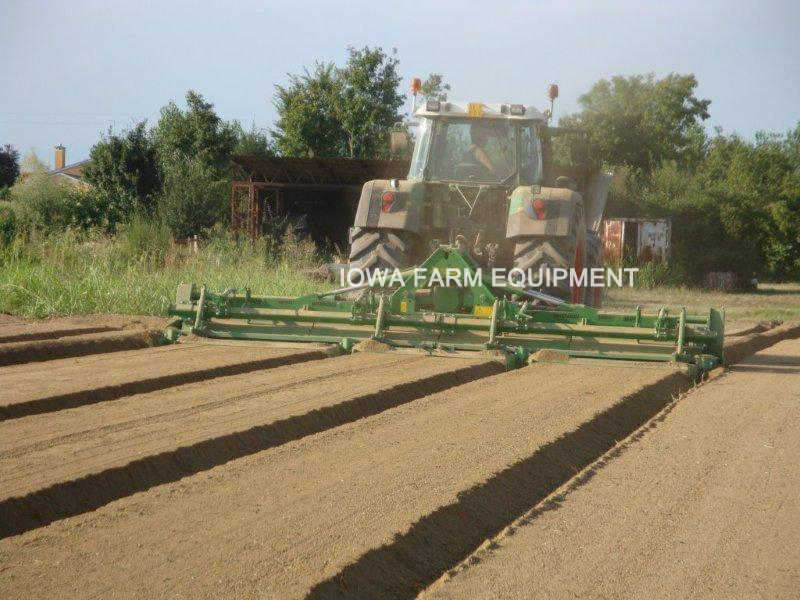

CA Series Burier with Elevated Bed Shapers

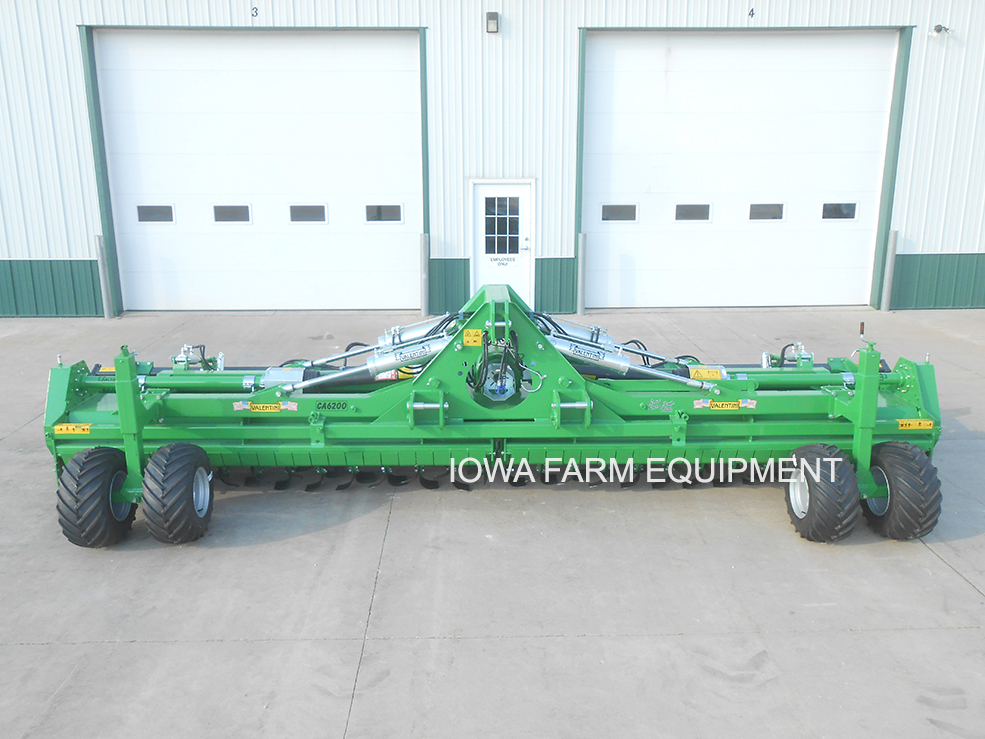

CA6200 23’ Folding Burier with Hydraulically Adjusted Packer Roller
CA6200 23’ Folding Burier with Hydraulically Adjusted Packer Roller

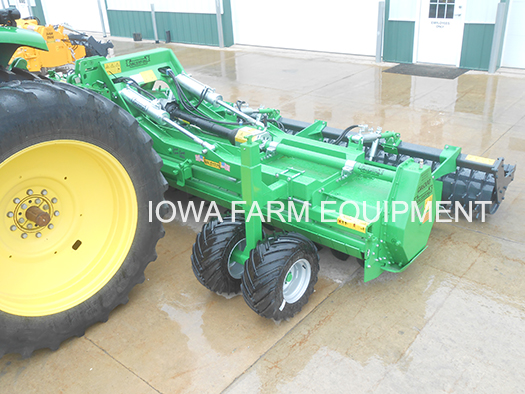

CA6200 with Front Dual Gage Wheels For Precise Working Depth Management
(Note: CA6200 Is The Narrowest Compatible Size For Tractors With Duals Set For 30” Rows)
CA6200 with Front Dual Gage Wheels For Precise Working Depth Management
QUICK HITCH COMPATIBILITY
Another Standard Feature!
REAR ROLLERS
Provides Superior Working Depth Adjustment & Soil Conditioning.
Available with Manual or Hydraulic Adjustment.
Use the Hydraulic Adjustment Option & Control Working Depth Adjustment From Your Tractors Operator Station On-The-Fly!
ACCESSORIES
'CA' SERIES BURIER SPECIFICATIONS
MODEL CA4200 CA4700 CA5200 CA5700 CA6200 CA6700 CA7200 CA7700
Tractor Horsepower (PTO) 180-400HP 200-400HP 220-400HP 240-400HP 260-400HP 280-400HP 300-400HP 320-400HP
Hitch/Hitch Category CAT 3N, 3, 4N
Working Width 14'-0" 15'-7" 17'-3" 18'-10" 20'-6" 22'-2" 23'-9" 25'-5"
Overall Width 14'-10" 16'-5" 18'-1" 19'-8" 21'-4" 23'-0" 24'-7" 26'-3"
Quantity of Blades 96 108 120 132 144 156 168 180
Working Depth 11"

(Toughest Ground may require Plow Shares or 2-Passes for Max Depth)

Rock & Debris Burying Capacity Max 5”-6" Dia, Subject To Concentration
Rotor RPM's 245 RPM
Blade Tips RPM's 306 RPM
Weight with Packer Roller 9,127lbs. 9,921lbs. 10,450lbs. 10,913lbs. 11,530lbs. 12,015lbs. 12,743lbs. 13,294lbs.
Weights are Less Pallets, Crates & PTO Shaft.
'CA' SERIES BURIER SPECIFICATIONS
MODEL CA4200 CA4700 CA5200 CA5700 CA6200 CA6700 CA7200 CA7700
Tractor Horsepower (PTO) 180-400HP 200-400HP 220-400HP 240-400HP 260-400HP 280-400HP 300-400HP 320-400HP
Hitch/Hitch Category CAT 3N, 3, 4N
Working Width 14'-0" 15'-7" 17'-3" 18'-10" 20'-6" 22'-2" 23'-9" 25'-5"
Overall Width 14'-10" 16'-5" 18'-1" 19'-8" 21'-4" 23'-0" 24'-7" 26'-3"
Quantity of Blades 96 108 120 132 144 156 168 180
Working Depth 11"

(Toughest Ground may require Plow Shares or 2-Passes for Max Depth)

Rock & Debris Burying Capacity Max 5”-6" Dia, Subject To Concentration
Rotor RPM's 245 RPM
Blade Tips RPM's 306 RPM
Weight with Packer Roller 9,127lbs. 9,921lbs. 10,450lbs. 10,913lbs. 11,530lbs. 12,015lbs. 12,743lbs. 13,294lbs.
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
